Steel Rails

Large quantities of steel rail used on China’s early railways were imported from Britain. Lines such as the Imperial Railways of North China, Peking–Kalgan Railway, and Peking–Mukden Railway all used rails manufactured by different British steelworks, including Barrow, Cammell, Bolckow Vaughan, Dowlais, and Port Talbot. A common rail weight was 85 lb/yd, approximately 42 kg/m.

These rails usually carried rolled inscriptions on the web recording the manufacturer, year of production, railway name or abbreviation, and rail section or weight, with markings such as I.C.R., I.P.K.R., and P.M.R. As a result, they are not merely surviving pieces of railway equipment, but also important physical evidence for identifying the construction dates, material sources, and subsequent history of early railway lines.

As main-line rails were progressively renewed, some rails manufactured in the late nineteenth and early twentieth centuries were transferred to freight yards, industrial sidings, branch lines, and other secondary tracks, allowing them to survive into the present day. These century-old rails also bear witness to the close relationship between the British steel industry and the development of China’s early railway network.

BARROW STEEL . Sec 435 1896. I.C.R
Manufactured in 1896 by the Barrow Hematite Steel Company Ltd. for the Chinese Railway Company. Weight: 85 lb/yd (42 kg/m). The rail was originally used on the Imperial Railways of North China. Photographed in March 2017 at the east freight yard of Kangzhuang Station on the Peking–Kalgan Railway.

CAMMELL.S STEEL 1896. I.C.R SEC 543
Manufactured in 1896 by Cammell’s Steel Works for the Chinese Railway Company. Weight: 85 lb/yd (42 kg/m). Originally used on the Imperial Railways of North China. Photographed in December 2018 at the Beijing Railway Test Ring.

CAMMELL.S STEEL 1897. I.C.R SEC 543
A fishplate manufactured by Cammell’s Steel Works for the Chinese Railway Company for use with 85 lb/yd (42 kg/m) rails. It was originally used on the Imperial Railways of North China. Photographed in October 2018 at the Qinglongqiao Permanent Way Section on the Peking–Kalgan Railway.

CAMMELL.S STEEL.W. 1897. I.C.R SEC 543
Manufactured by Cammell’s Steel Works for the Chinese Railway Company. Weight: 85 lb/yd (42 kg/m). Originally used on the Imperial Railways of North China. Photographed in March 2017 at the east freight yard of Kangzhuang Station.

CAMMELL.S STEEL 1897. I.C.R SEC 543
A fishplate manufactured by Cammell’s Steel Works for the Chinese Railway Company for 85 lb/yd (42 kg/m) rail. It was originally used on the Imperial Railways of North China. Photographed in March 2017 at the east freight yard of Kangzhuang Station.

BARROW STEEL . Sec 435 1898. I.C.R
Manufactured in 1898 by the Barrow Hematite Steel Company Ltd. for the Chinese Railway Company. Weight: 85 lb/yd (42 kg/m). Originally used on the Imperial Railways of North China. Photographed in March 2017 at the east freight yard of Kangzhuang Station.

BARROW STEEL . Sec 435 1898. I.C.R
Manufactured in 1898 by the Barrow Hematite Steel Company Ltd. for the Chinese Railway Company. Weight: 85 lb/yd (42 kg/m). Originally used on the Imperial Railways of North China. Photographed in March 2016 on the grain-depot siding at Zhangjiakou Station on the Peking–Kalgan Railway.

BV & Co Lᴰ - 1908 - IPKR
Manufactured in 1908 by Bolckow, Vaughan & Co., Ltd. for the Peking–Kalgan Railway. Weight: 85 lb/yd (42 kg/m). Originally laid on the Peking–Kalgan Railway. Photographed in March 2017 at Kangzhuang Station.

BARROW STEEL . Sec 435 1896. I.C.R
Manufactured in 1896 by the Barrow Hematite Steel Company Ltd. for the Chinese Railway Company. Weight: 85 lb/yd (42 kg/m). Originally used on the Imperial Railways of North China. Photographed in October 2019 at the east freight yard of Kangzhuang Station.

CAMMELL.S STEEL.W. 1896. I.C.R SEC 543
Manufactured in 1896 by Cammell’s Steel Works for the Chinese Railway Company. Weight: 85 lb/yd (42 kg/m). Originally used on the Imperial Railways of North China. Photographed in March 2015 on the siding of the China Academy of Railway Sciences at Sidaokou, Beijing.

CAMMELL.S STEEL 1896. I.C.R SEC 543
A fishplate manufactured in 1896 by Cammell’s Steel Works for the Chinese Railway Company for use with 85 lb/yd (42 kg/m) rail. It was originally used on the Imperial Railways of North China. Photographed in March 2017 at the east freight yard of Kangzhuang Station.

CAMMELL.S STEEL.W. 1897. I.C.R SEC 543
Manufactured by Cammell’s Steel Works for the Chinese Railway Company. Weight: 85 lb/yd (42 kg/m). Originally used on the Imperial Railways of North China. Photographed in March 2017 at the east freight yard of Kangzhuang Station.

BARROW STEEL . Sec 435 1898. I.C.R
Manufactured in 1898 by the Barrow Hematite Steel Company for the Chinese Railway Company. Weight: 85 lb/yd (42 kg/m). Originally used on the Imperial Railways of North China. Photographed in June 2014 on a storage siding at Zhangjiakou Station.

BARROW STEEL . Sec 435 1898. I.C.R
Manufactured in 1898 by the Barrow Hematite Steel Company Ltd. for the Chinese Railway Company. Weight: 85 lb/yd (42 kg/m). Originally used on the Imperial Railways of North China. Photographed in July 2014 in the exhibition room at Qinglongqiao Station.

BARROW STEEL.1907. SEC435 I.C.R
Manufactured in 1907 by the Barrow Hematite Steel Company Ltd. for the Chinese Railway Company. Weight: 85 lb/yd (42 kg/m). Originally used on the Imperial Railways of North China. Photographed in December 2018 at the Beijing Railway Test Ring.

BV & Co Lᴰ - 1908 - IPKR
Manufactured in 1908 by Bolckow, Vaughan & Co., Ltd. for the Peking–Kalgan Railway. Weight: 85 lb/yd (42 kg/m). Originally laid on the Peking–Kalgan Railway. Photographed in March 2017 at Kangzhuang Station.

I.P.K.R-D.S 1908
A fishplate manufactured in 1908 by Dowlais Steel for 85 lb/yd (42 kg/m) rail on the Peking–Kalgan Railway. Photographed in December 2021 on the headshunt at Datai Station on the Mentougou–Zhaitang Railway.

BV & Co LD - 1908 - IPKR
Manufactured in 1908 by Bolckow, Vaughan & Co., Ltd. for the Peking–Kalgan Railway. Weight: 85 lb/yd (42 kg/m). Originally laid on the Peking–Kalgan Railway. Photographed in March 2015 on the siding of the China Academy of Railway Sciences at Sidaokou, Beijing.

I.P.K.R-D.S 1908
Manufactured in 1908 by Dowlais Steel for the Peking–Kalgan Railway. Weight: 85 lb/yd (42 kg/m). Originally laid on the Peking–Kalgan Railway. Photographed in March 2016 on the grain-depot siding at Zhangjiakou Station.

BV & Co LD - 1908 - IPKR,英國Bolckow, Vaughan & Co., Ltd(伯爾考沃恩公司),1908年為京張鐵路製造,85 lb/yd(42kg/m),該鋼軌原鋪設於京張鐵路。2015年3月攝於北京四道口的中國鐵道科學院專用線。

P.M.R 85LBS PER Yᴰ PORT TALBOT STEEL Co Lᴰ 3-1922
Manufactured in March 1922 by Port Talbot Steelworks in Britain for the Peking–Mukden Railway. Weight: 85 lb/yd (42 kg/m). Photographed in November 2019 at Kangzhuang.

BV & Co Lᴰ - 1898 - IPKR
Manufactured in 1908 by Bolckow, Vaughan & Co., Ltd. for the Chinese railway system. The rail was originally laid on either the Imperial Railways of North China or the Lugouqiao–Hankow Railway. Photographed in April 2020 at the former residence of the Divisional Engineer at Fengtai.

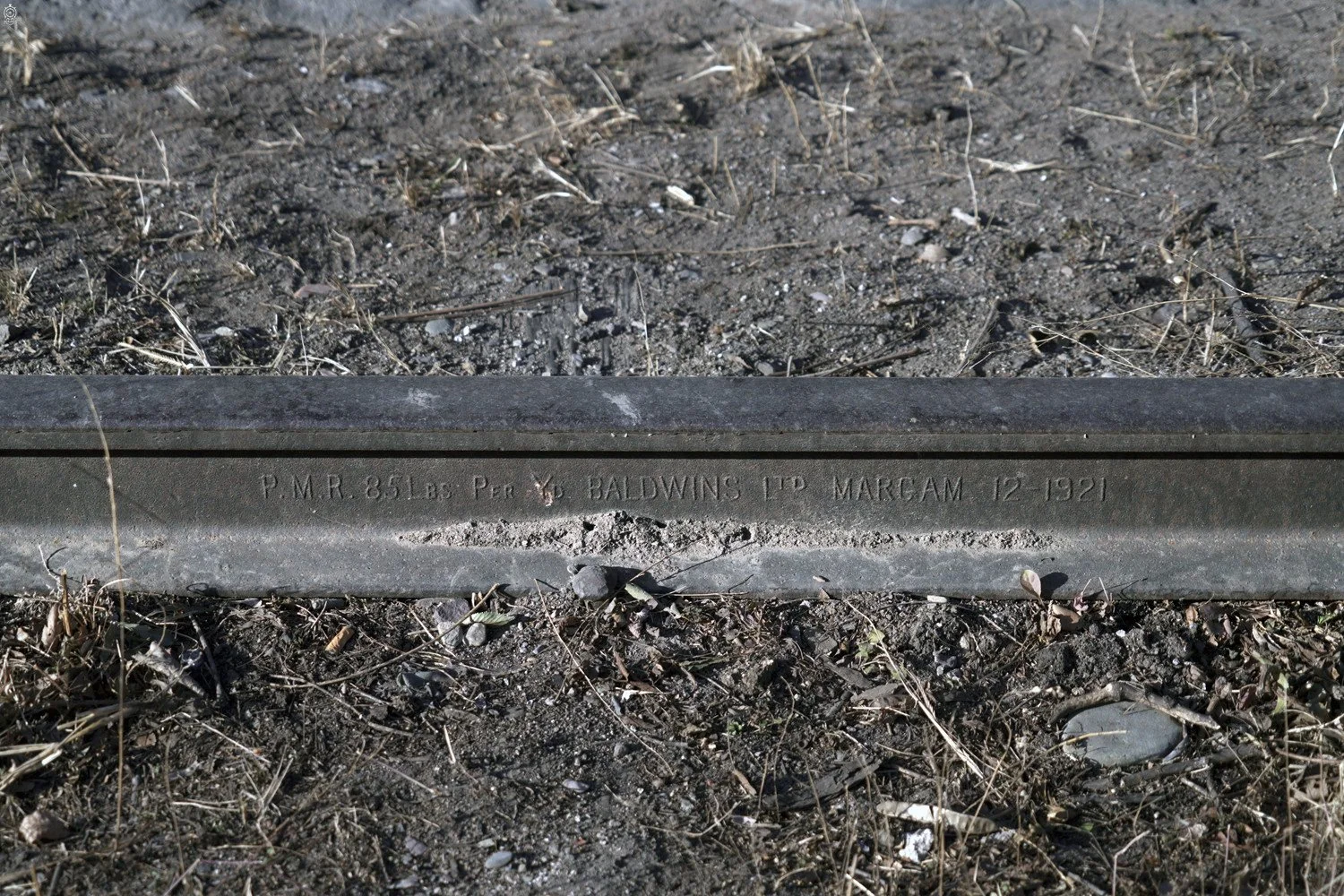

P.M.R 85LBS PER YD BALDWINS LTD MARGAM 12-1921
An 85 lb/yd rail manufactured in December 1921 by Baldwins Ltd. at its Margam steelworks in Wales for the Peking–Mukden Railway. Photographed in December 2021 at Datai.

I.P.K.R-D.S 1908
Manufactured in 1908 by Dowlais Steel for the Peking–Kalgan Railway. Weight: 85 lb/yd (42 kg/m). Originally laid on the Peking–Kalgan Railway. Photographed in March 2017 at Kangzhuang Station.

P.M.R 85LBS PER Yᴰ PORT TALBOT STEEL Co Lᴰ 3-1922
Manufactured in March 1922 by Port Talbot Steelworks for the Peking–Mukden Railway. Weight: 85 lb/yd (42 kg/m). Photographed in November 2019 on the Nanpiao Colliery Railway.

P.M.R 85LBS PER Yᴰ PORT TALBOT STEEL Co Lᴰ 4-1922
Manufactured in April 1922 by Port Talbot Steelworks for the Peking–Mukden Railway. Weight: 85 lb/yd (42 kg/m). Photographed in November 2019 on the Nanpiao Colliery Railway.

CAMMELL.S STEEL.W.1896.I.C.R SEC 533
Manufactured in 1896 by Cammell’s Steel Works for the Chinese Railway Company. The rail was originally used on the Imperial Railways of North China. Photographed in April 2020 at the former residence of the Divisional Engineer at Fengtai.

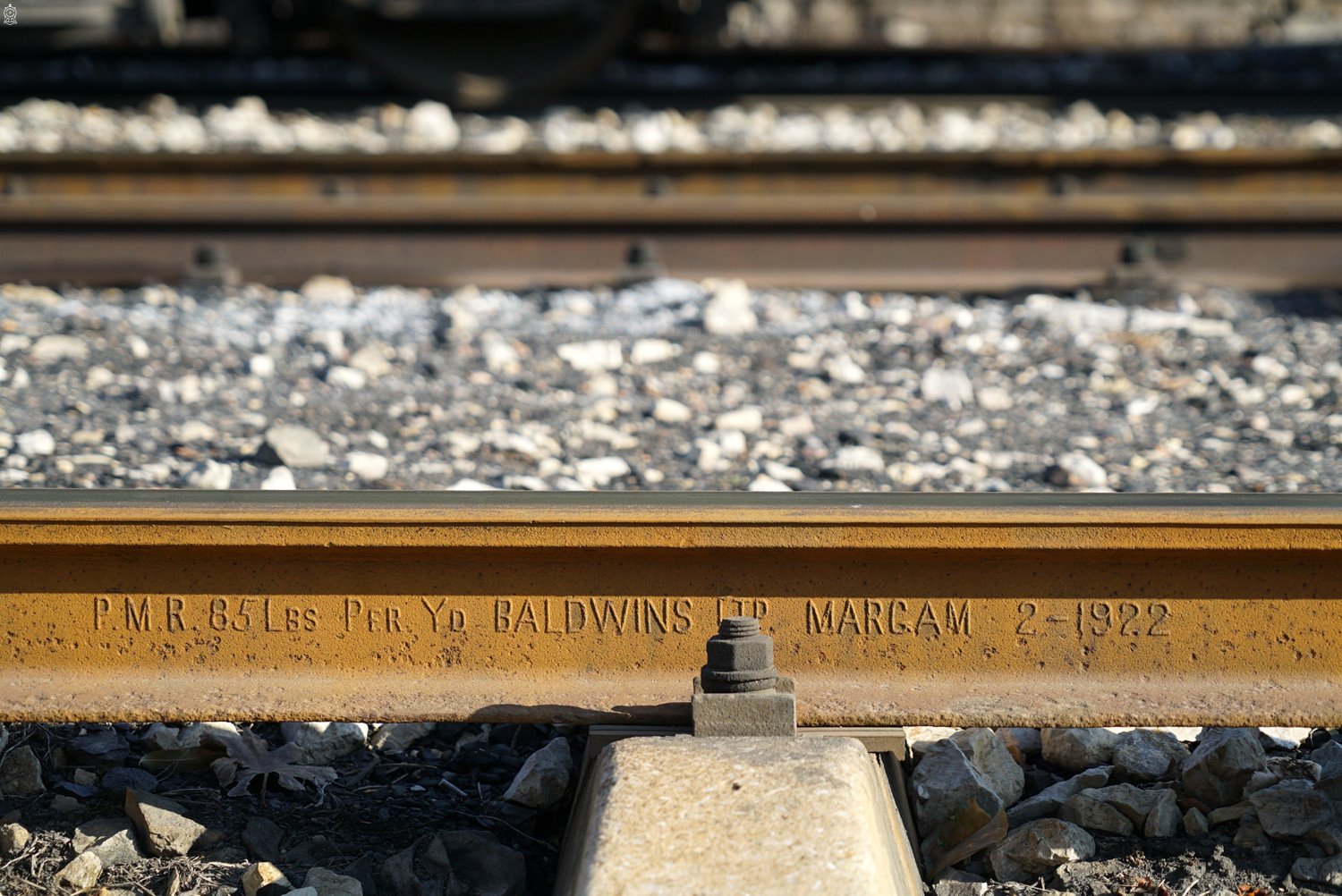

P.M.R 85LBS PER YD BALDWINS LTD MARGAM II-1922
An 85 lb/yd rail manufactured by Baldwins Ltd. at its Margam steelworks in Wales for the Peking–Mukden Railway. Photographed in November 2019 at Nanpiao.

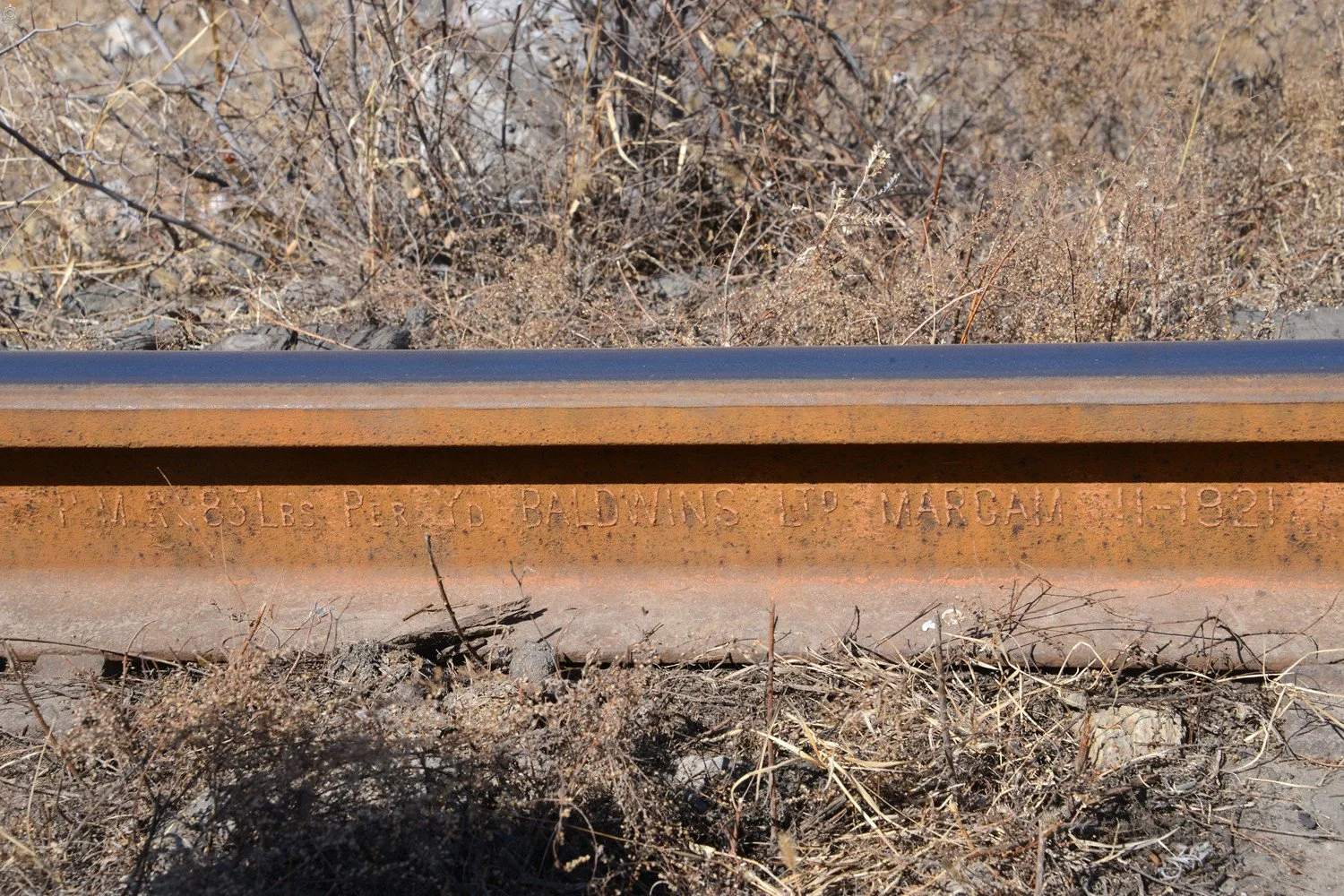

P.M.R 85LBS PER YD BALDWINS LTD MARGAM II-1922
An 85 lb/yd rail manufactured by Baldwins Ltd. at its Margam steelworks in Wales for the Peking–Mukden Railway. Photographed in March 2017 at Nanpiao.

W. BEARDMORE & Co. ASCE 6540. 6-1928 BOH HHR
Manufactured in June 1928 by William Beardmore and Company of Britain. Photographed in December 2019 on the former Burma Road Railway (Kunming–Shilin line) between Kunming North and Mayuan.
