Steel Rails
Between 1895 and 1928, as the United States became involved in the construction of several railways in China and Chinese railway authorities purchased large quantities of American steel products, substantial numbers of American-made rails were laid across the country. They were used on lines including the Chinese Eastern Railway, the Peking–Kalgan and Peking–Suiyuan Railways, the Peking–Mukden Railway, the Kiaochow–Tsinan Railway, the Peking–Hankow Railway, and the South Manchuria Railway, reflecting the close connection between the American steel industry and the development of modern railways in China.
These rails were manufactured by major American steel companies such as Maryland Steel, Carnegie Steel, Bethlehem Steel, Tennessee Coal, Iron & Railroad, Illinois Steel, and Lackawanna Steel. Rolled markings on the rail web commonly recorded the manufacturer, year and month of production, rail weight, section standard, and the name or abbreviation of the purchasing railway, such as I.P.K.R., KTR, KI-HAN RLY, and S.M.R. These markings provide important evidence for identifying the origin and service history of individual rails. After track renewals, some rails were later reused on other railways, industrial sidings, as bridge guard rails, or even as structural members in buildings. As a result, many surviving examples today are found far from the railway on which they were originally laid.

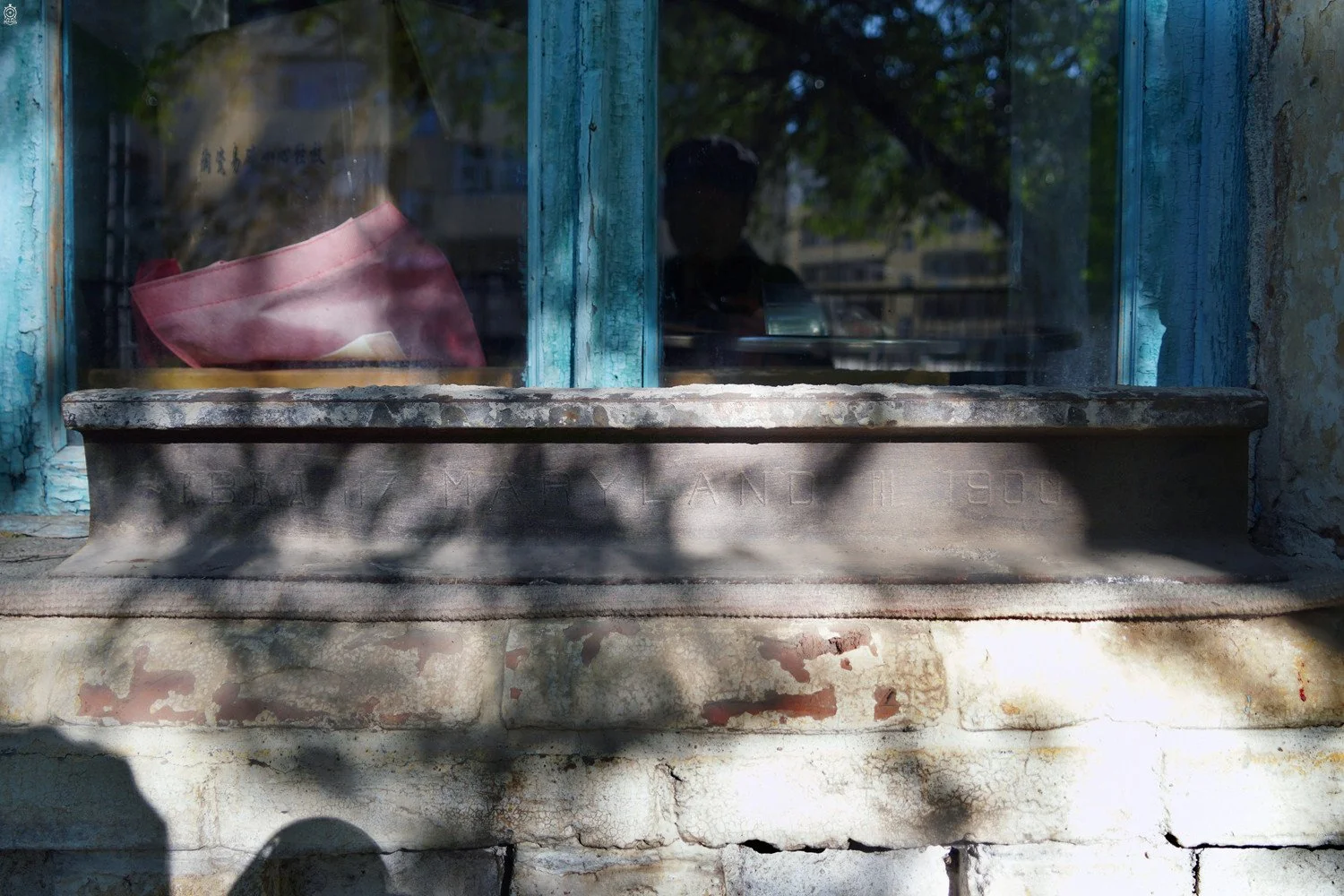

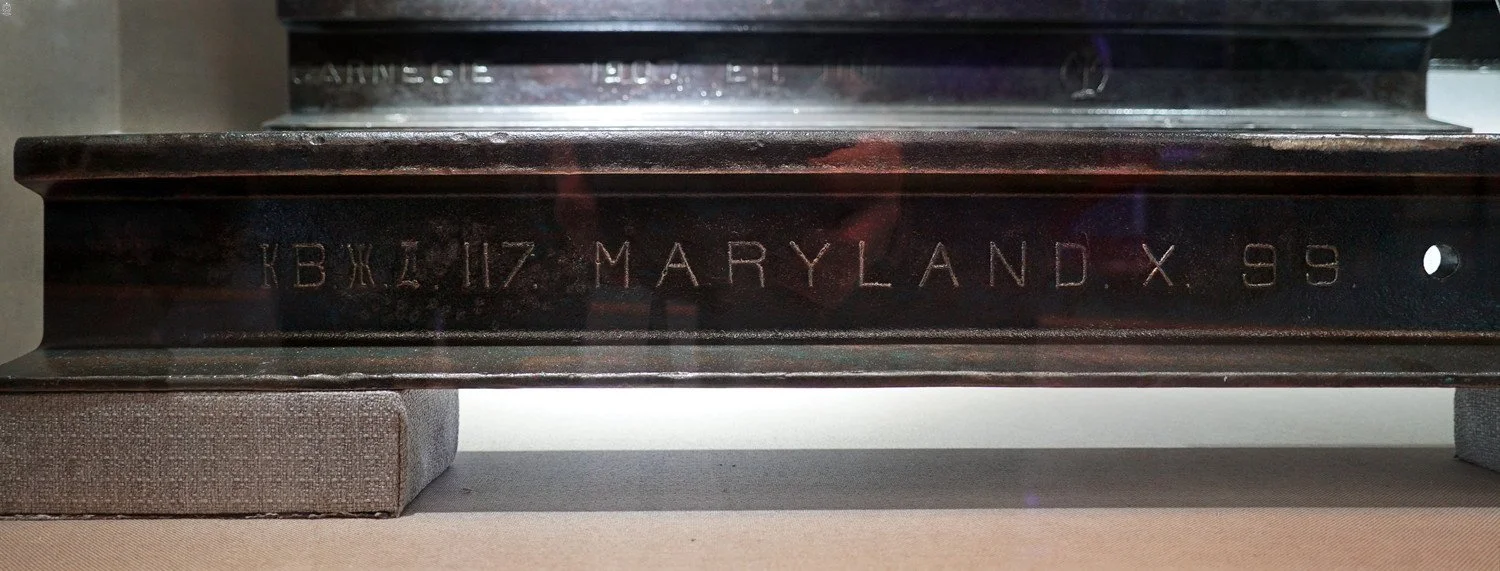

KBжд. 117. MARYLAND.X.99.
Manufactured by the Maryland Steel Company in October 1899 for the Chinese Eastern Railway. The rail weighs 85 lb/yd (42 kg/m) and was originally used on the Chinese Eastern Railway. Photographed at the Sujiatun Steam Locomotive Museum, Shenyang, in October 2019.

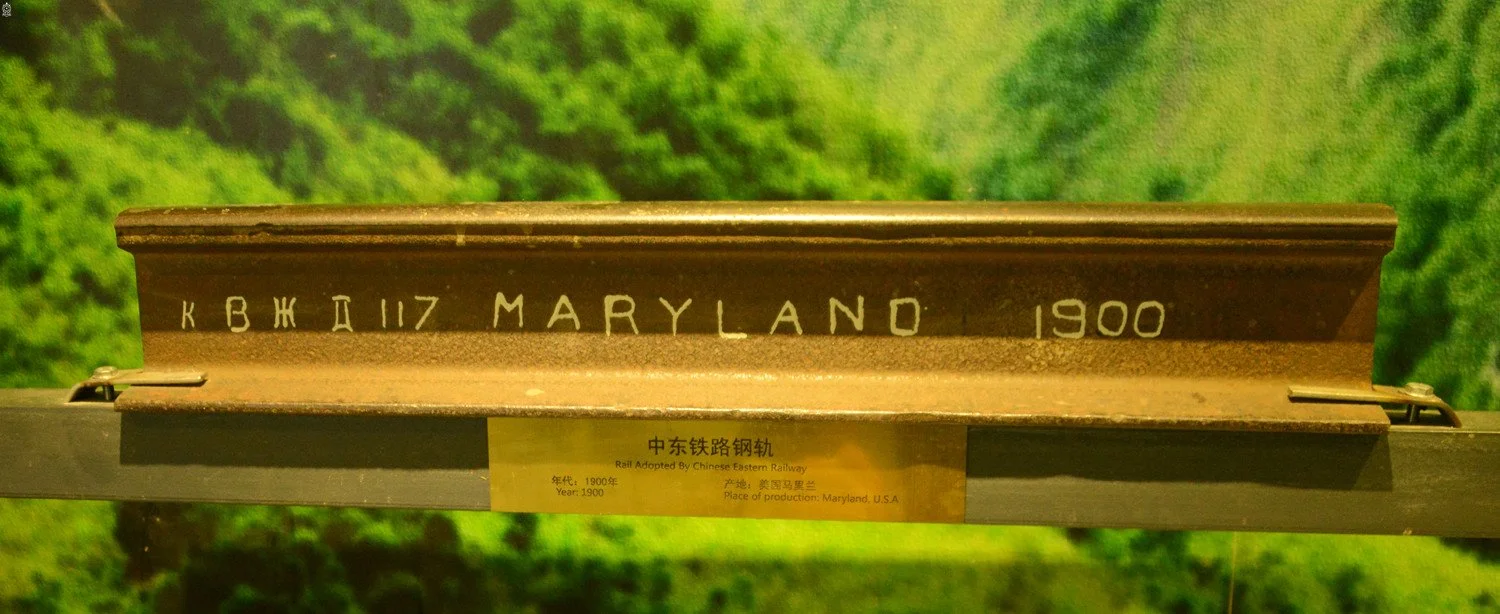

KBжд. 117. MARYLAND.IIII.1900.
Manufactured by the Maryland Steel Company in March 1900 for the Chinese Eastern Railway. The rail weighs 85 lb/yd (42 kg/m) and was originally used on the Chinese Eastern Railway. Photographed on the Wantang–Baizhai section of the Yunnan–Vietnam Railway in December 2019.
KBжд. 117. MARYLAND.III.1900.
Manufactured by the Maryland Steel Company in March 1900 for the Chinese Eastern Railway. The rail weighs 85 lb/yd (42 kg/m) and was originally used on the Chinese Eastern Railway. Photographed at the Yunnan Railway Museum in April 2017.

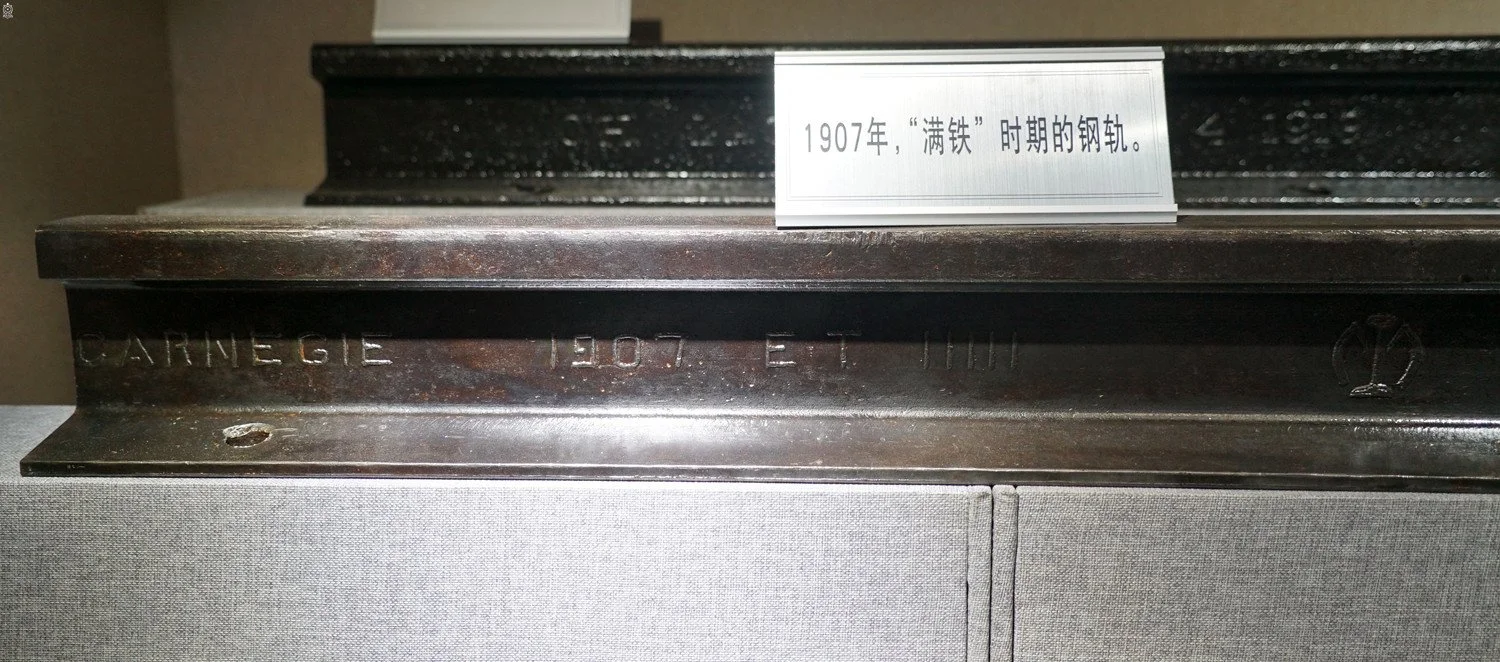

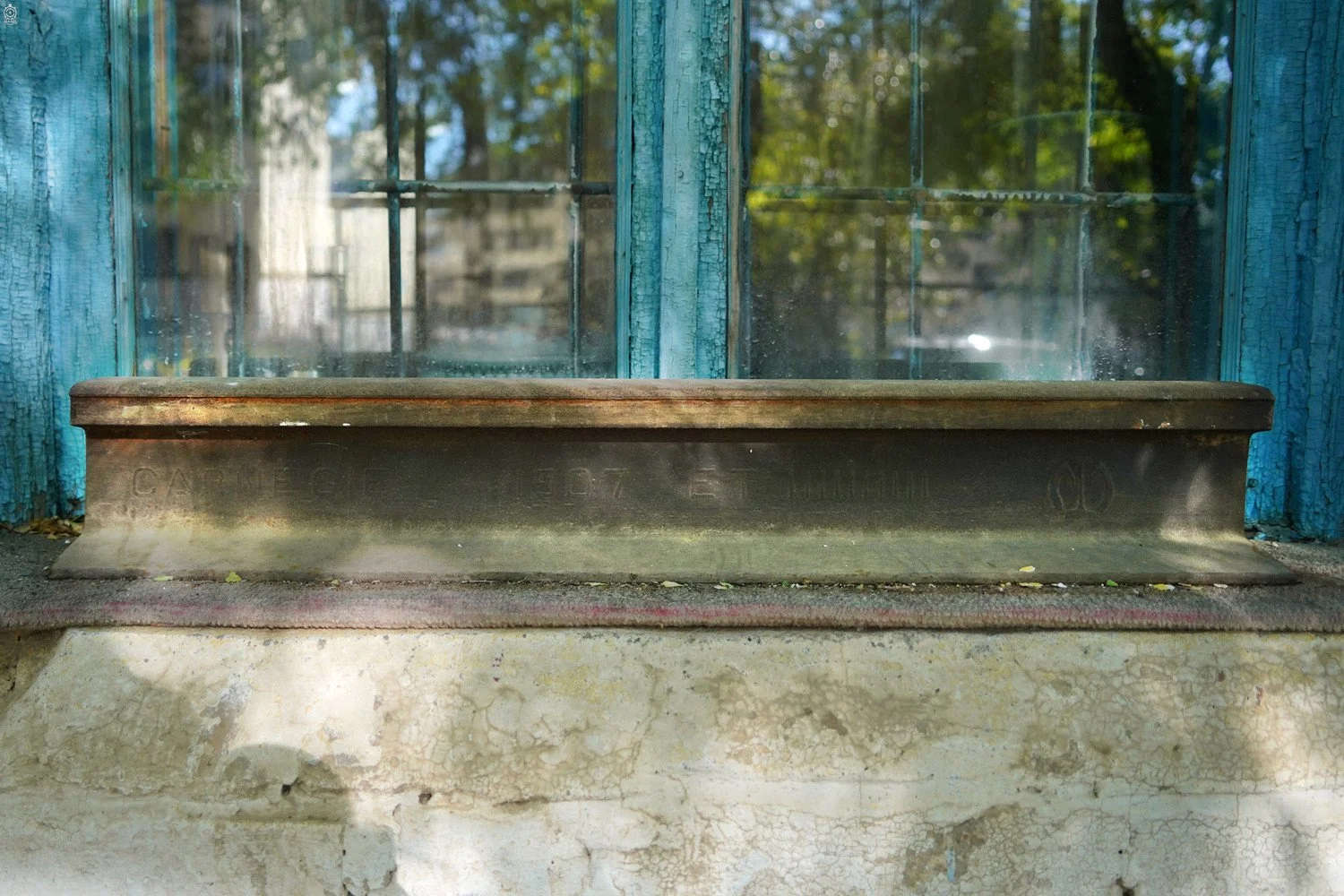

CARNEGIE 1907 ET IIIIIIIIII
Manufactured by the Carnegie Steel Company of Pennsylvania in October 1907 for the South Manchuria Railway. Photographed at the historic Chinese Eastern Railway section engineer’s office in Boketu in September 2024.

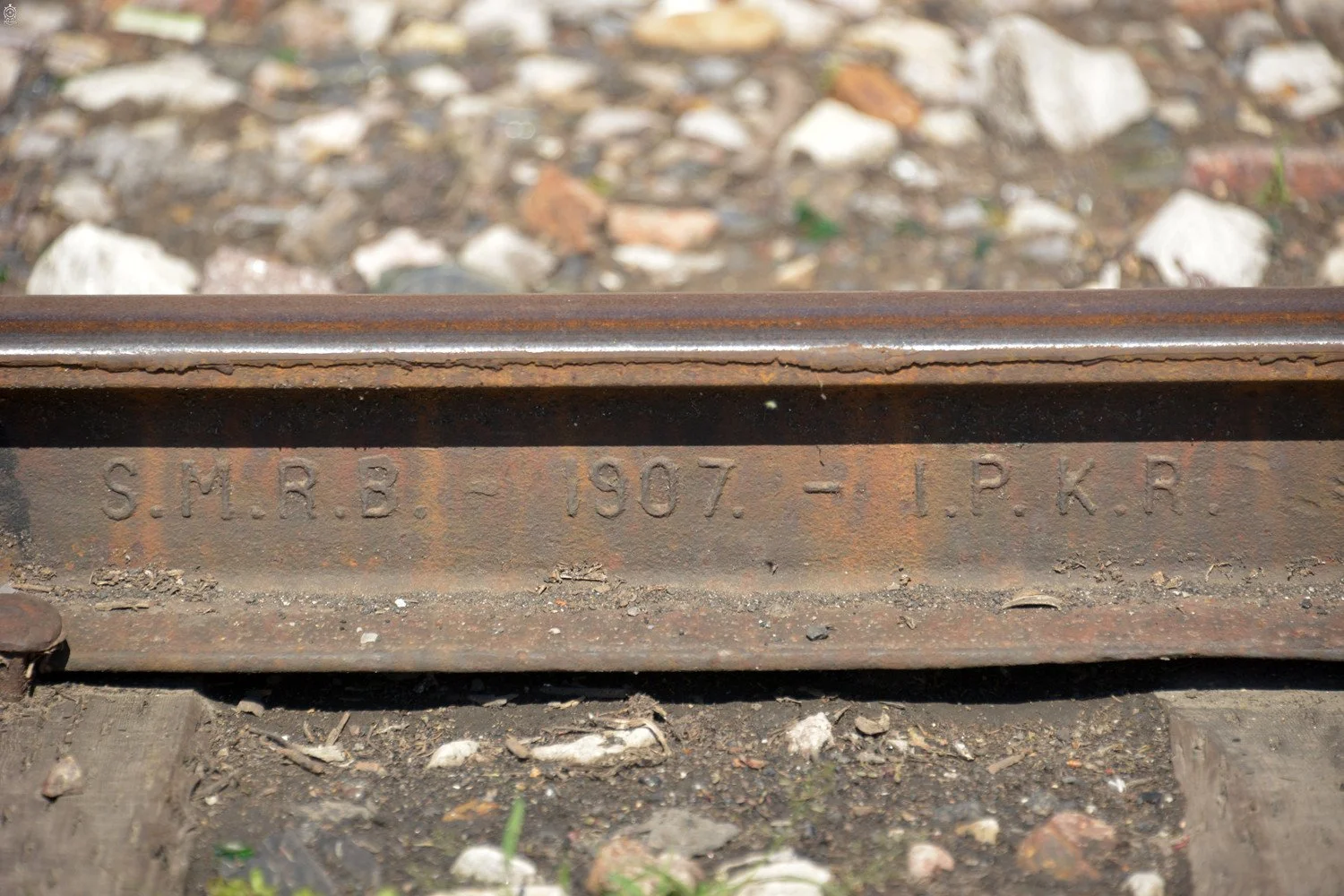

S.M.R.B - 1907 - I.P.K.R
Manufactured at the Steelton Works in the United States in 1907 for the Imperial Peking–Kalgan Railway. The rail weighs 85 lb/yd (42 kg/m). Photographed at the Kangzhuang engine house in March 2017.

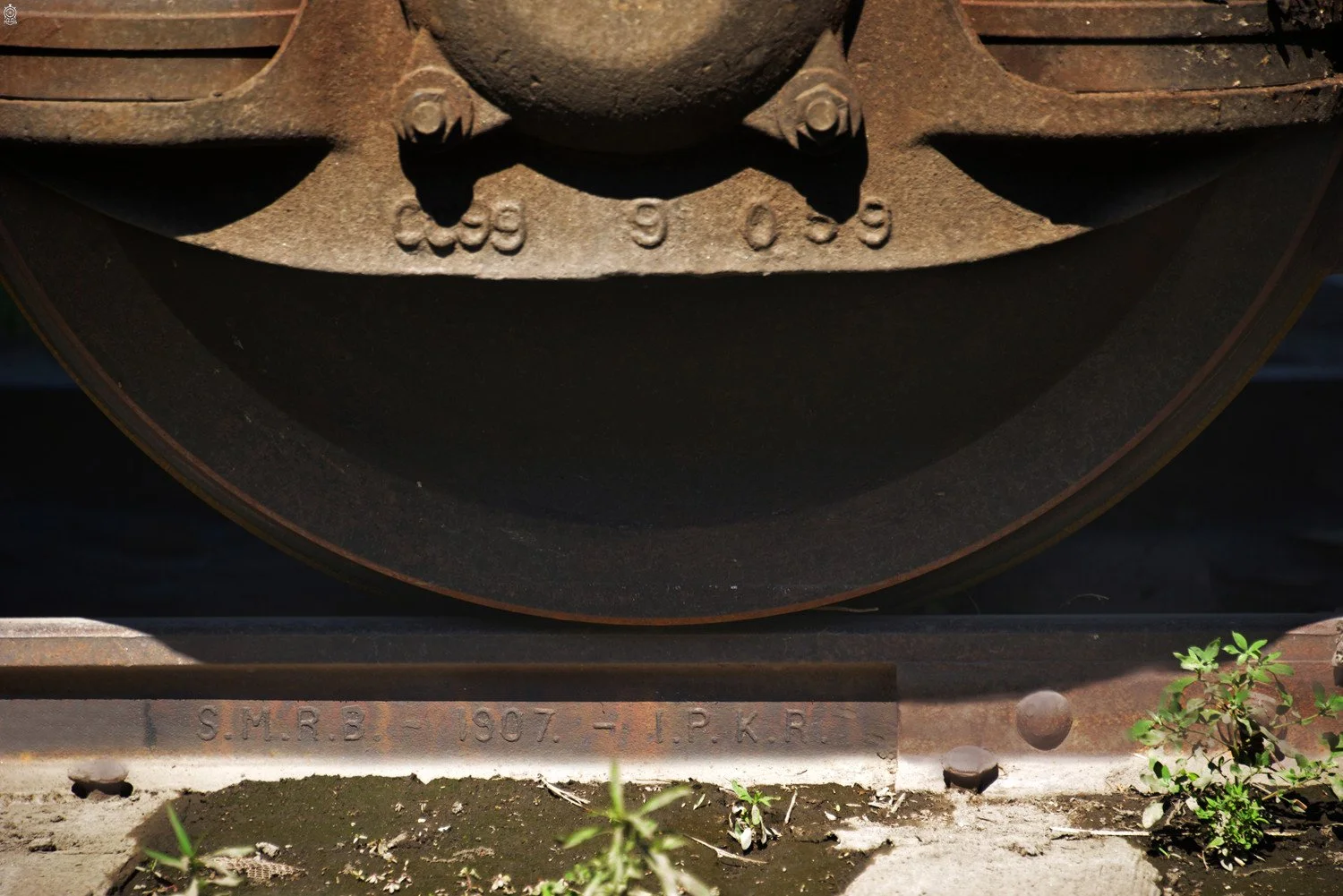

S.M.R.B - 1907 - I.P.K.R
Manufactured at the Steelton Works in the United States in 1907 for the Imperial Peking–Kalgan Railway. The rail weighs 85 lb/yd (42 kg/m). Photographed at Zhangjiakou Station in June 2014.
CARNEGIE 1907 ET IIIII
Manufactured by the Carnegie Steel Company of Pennsylvania in May 1907 for the South Manchuria Railway. Photographed at the Sujiatun Steam Locomotive Museum, Shenyang, in May 2019.

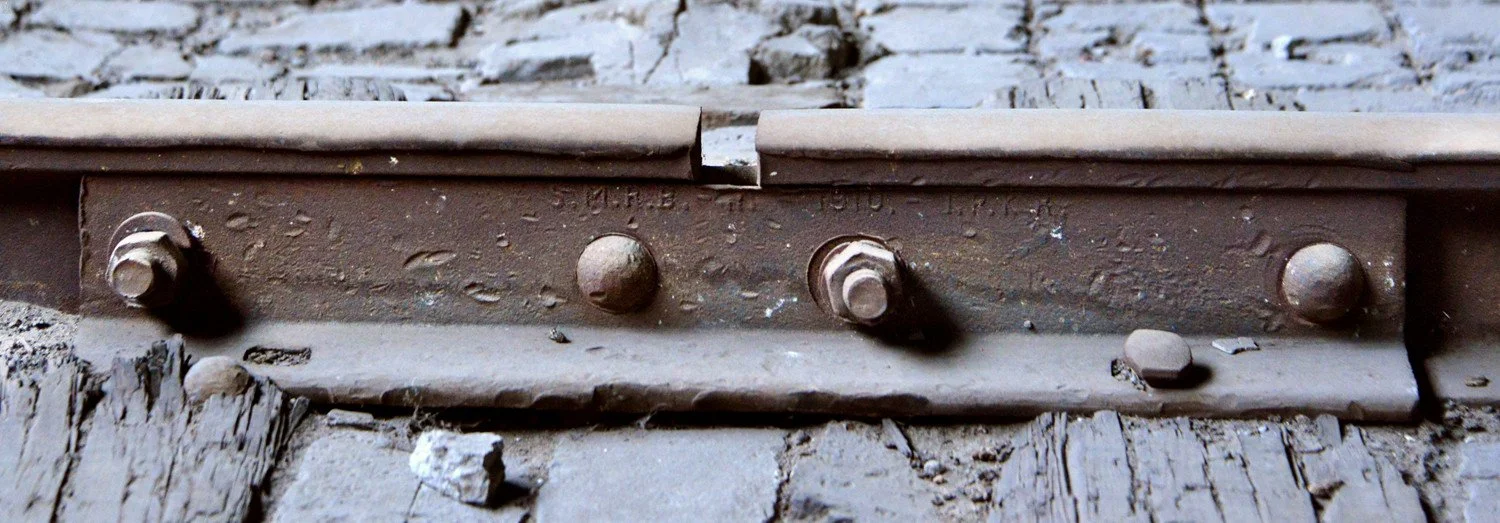

S.M.R.B - III - 1910 - I.P.K.R
A fishplate manufactured at the Steelton Works in the United States in March 1910 for 85 lb/yd (42 kg/m) rails used on the Peking–Kalgan / Peking–Suiyuan Railway. Photographed on the grain depot siding at Zhangjiakou Station in March 2016.

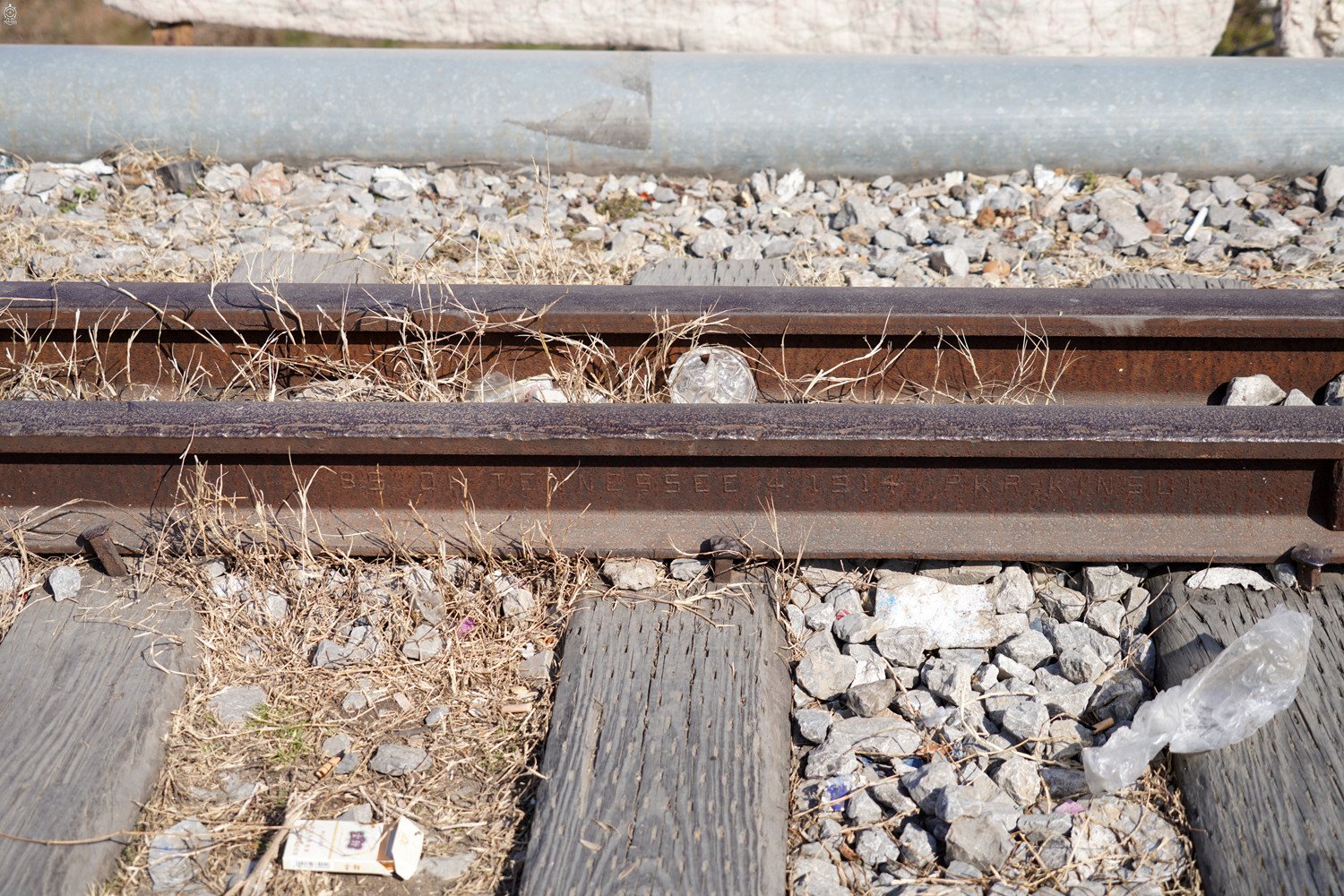

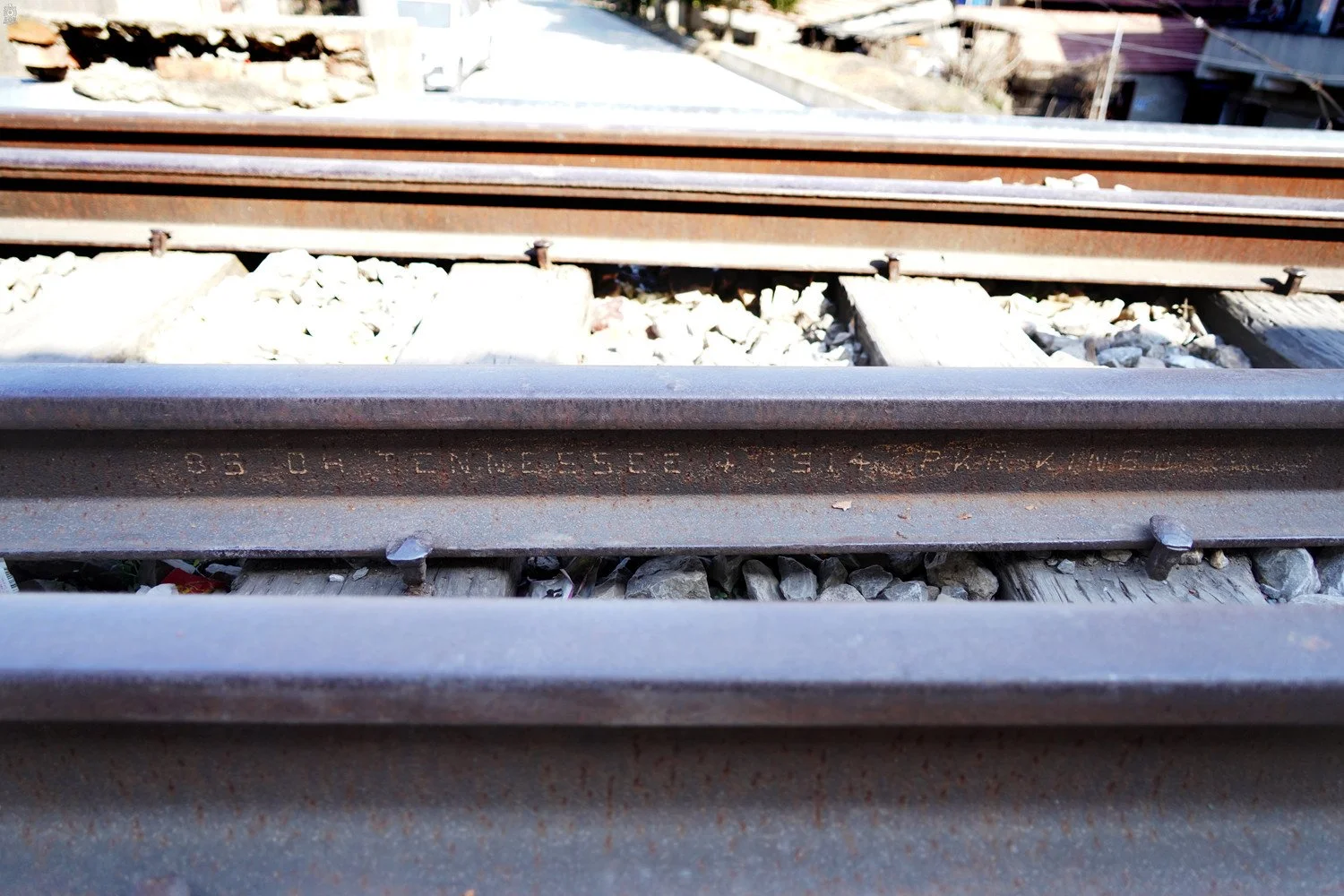

85 OH TENNESSEE 4 1914 PKR KINSUI
An 85 lb/yd rail manufactured in 1914 by the Tennessee Coal, Iron and Railroad Company for the Peking–Kalgan / Peking–Suiyuan Railway. It was later reused as a guard rail on a railway bridge serving a saltworks siding. Photographed in Yingcheng, Hubei, in January 2021.
85 OH TENNESSEE 4 1914 PKR KINSUI
An 85 lb/yd rail manufactured by the Tennessee Coal, Iron and Railroad Company in 1914 for the Peking–Kalgan / Peking–Suiyuan Railway. It was later reused as an inner guard rail on a railway bridge serving the Yingcheng Saltworks siding. Photographed in Yingcheng, Hubei, in January 2021.

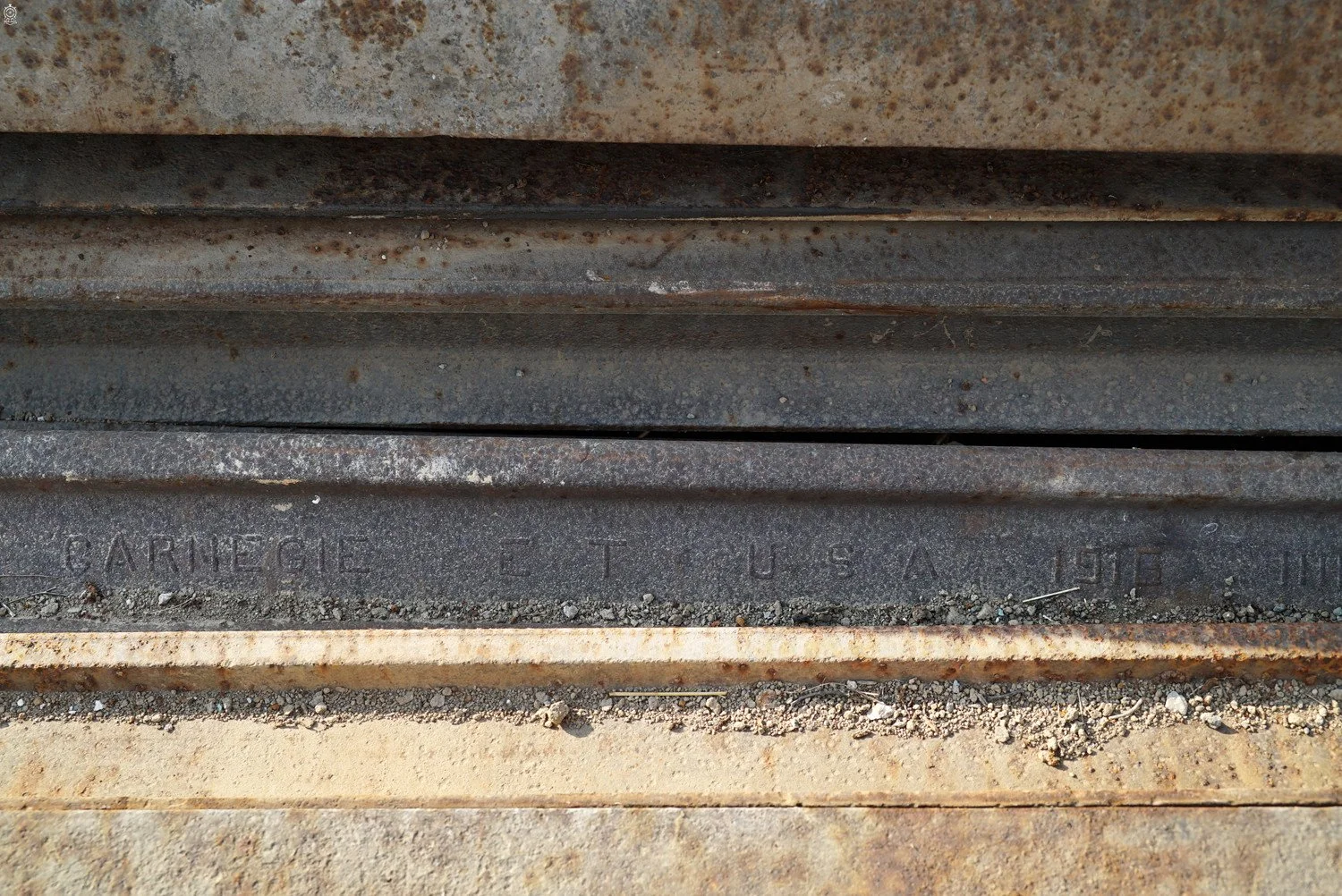

CARNEGIE E.T USA 1916 |||| 60 5-75 S R
Manufactured by the Carnegie Steel Company of Pennsylvania in April 1916. Photographed at the Sujiatun Steam Locomotive Museum, Shenyang, in May 2019.

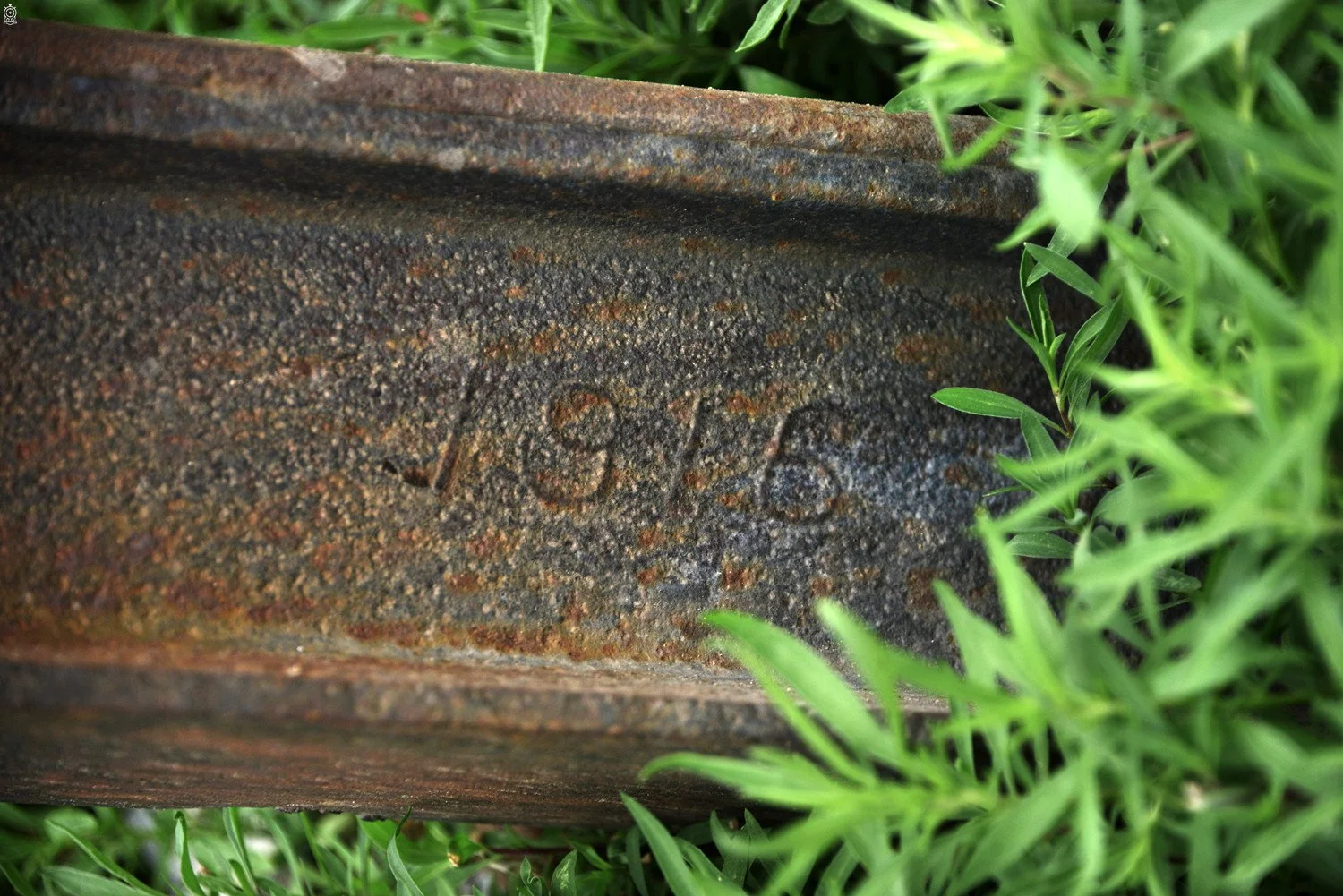

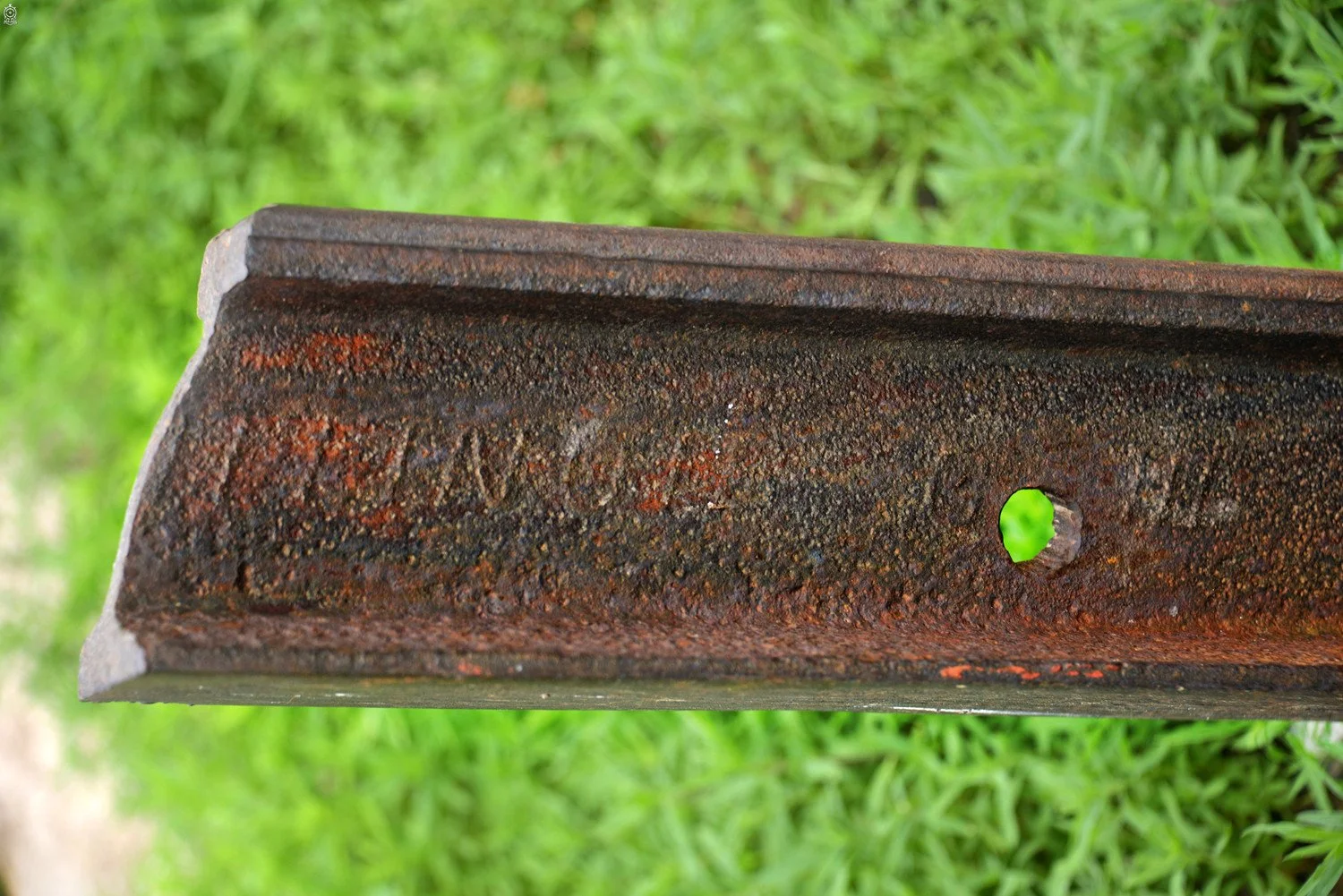

ILLINOIS G III 1916
A rail manufactured by the Illinois Steel Company in March 1916. Photographed at the south freight yard of Zhangjiakou in June 2014.

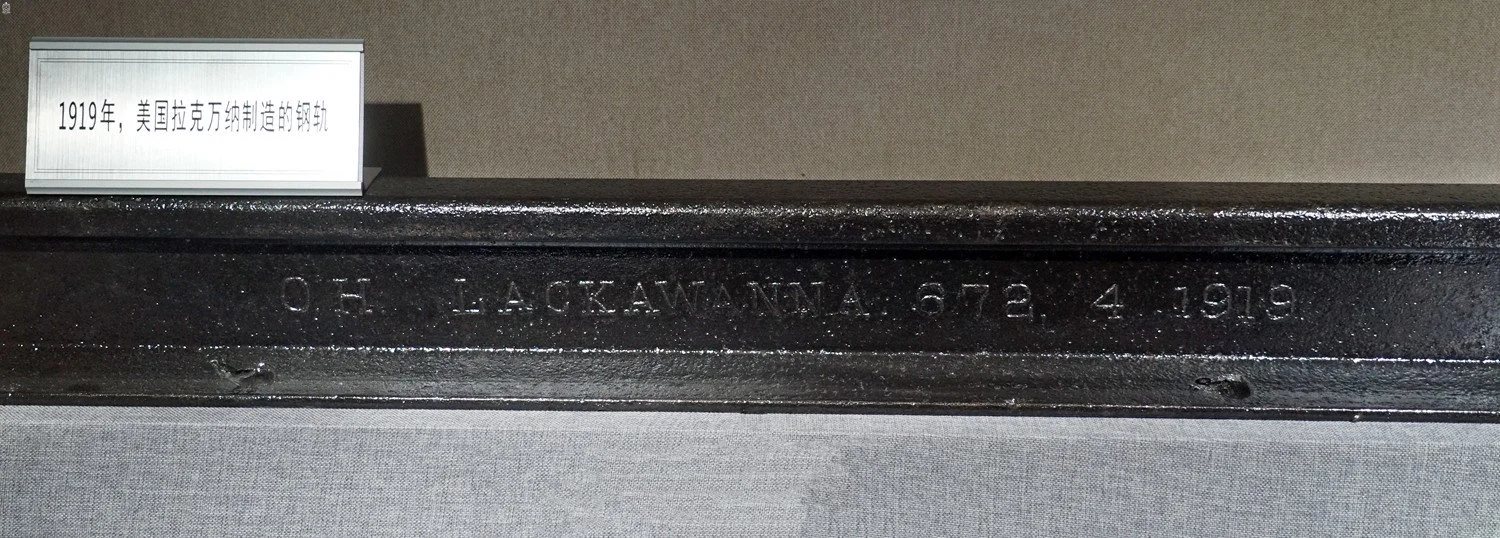

OH. LACKAWANNA. 672. 4. 1919
A rail manufactured by the Lackawanna Steel Company in April 1919. Photographed at the Sujiatun Steam Locomotive Museum, Shenyang, in October 2019.

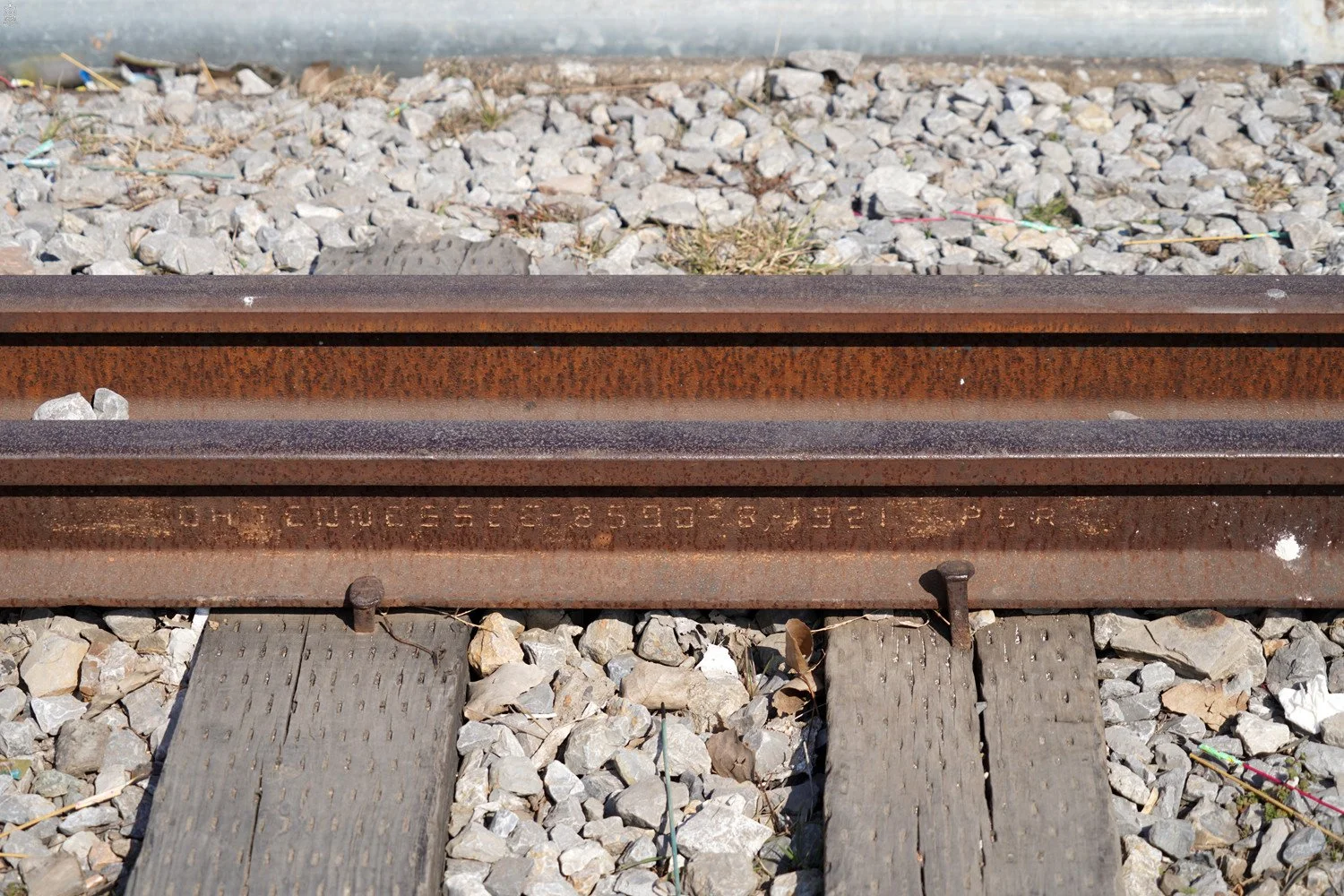

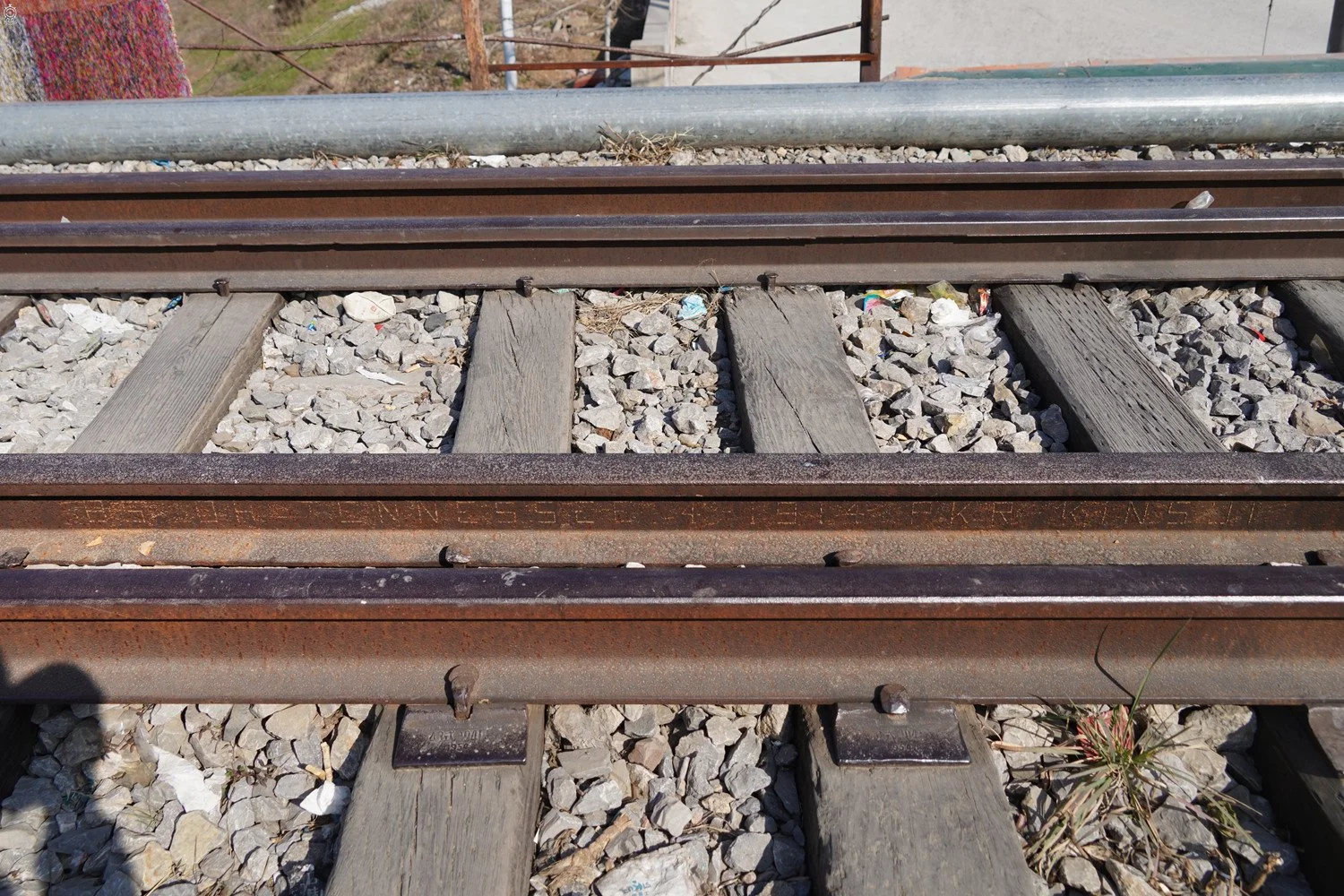

OH - TENNESSEE - 8590 - 8 - 1921 - PSR
An 85 lb/yd (42 kg/m) rail manufactured by the Tennessee Coal, Iron and Railroad Company in August 1921 for the Peking–Suiyuan Railway. It was originally used on the western section of the line. Photographed in Yingcheng, Hubei, in January 2021.

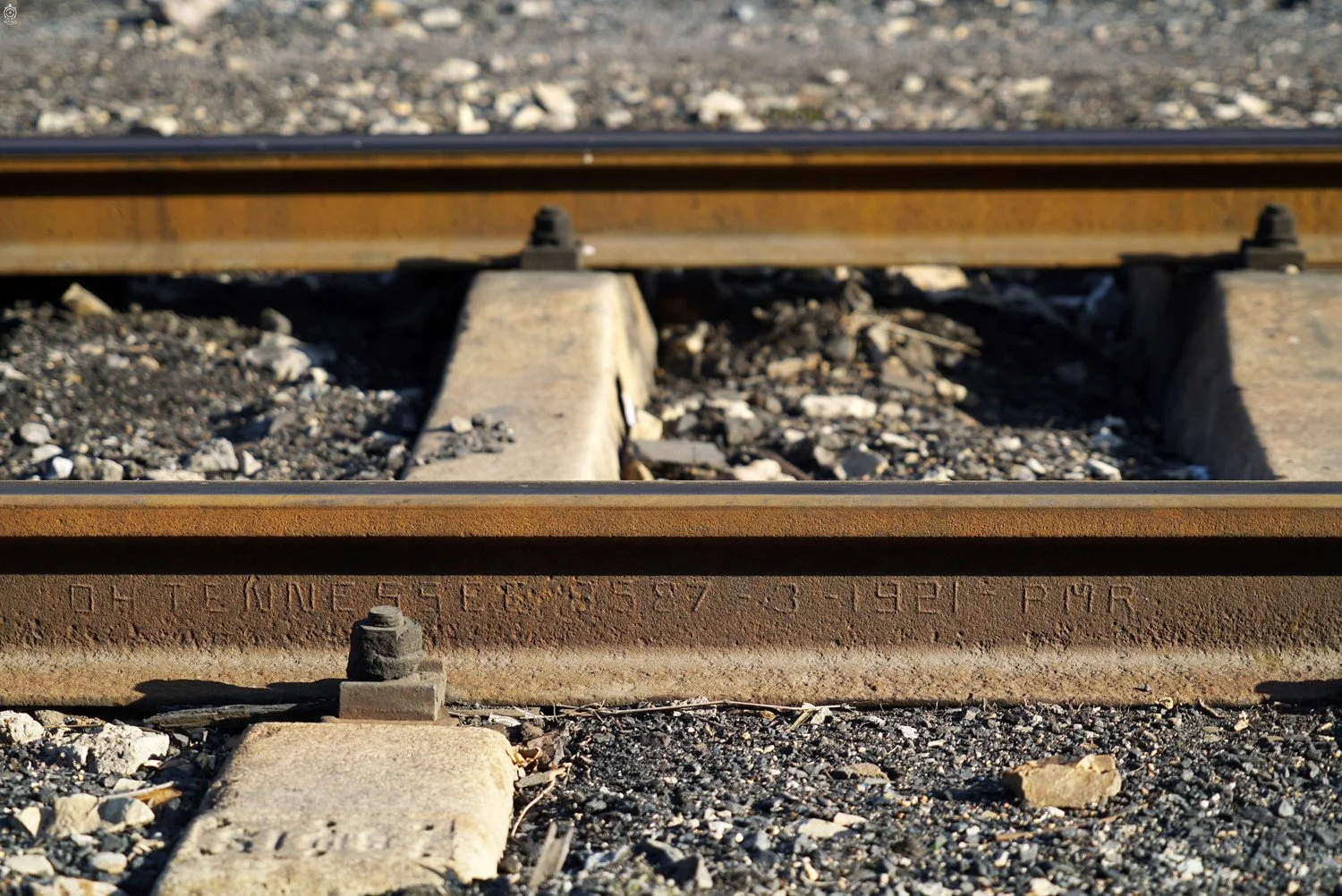

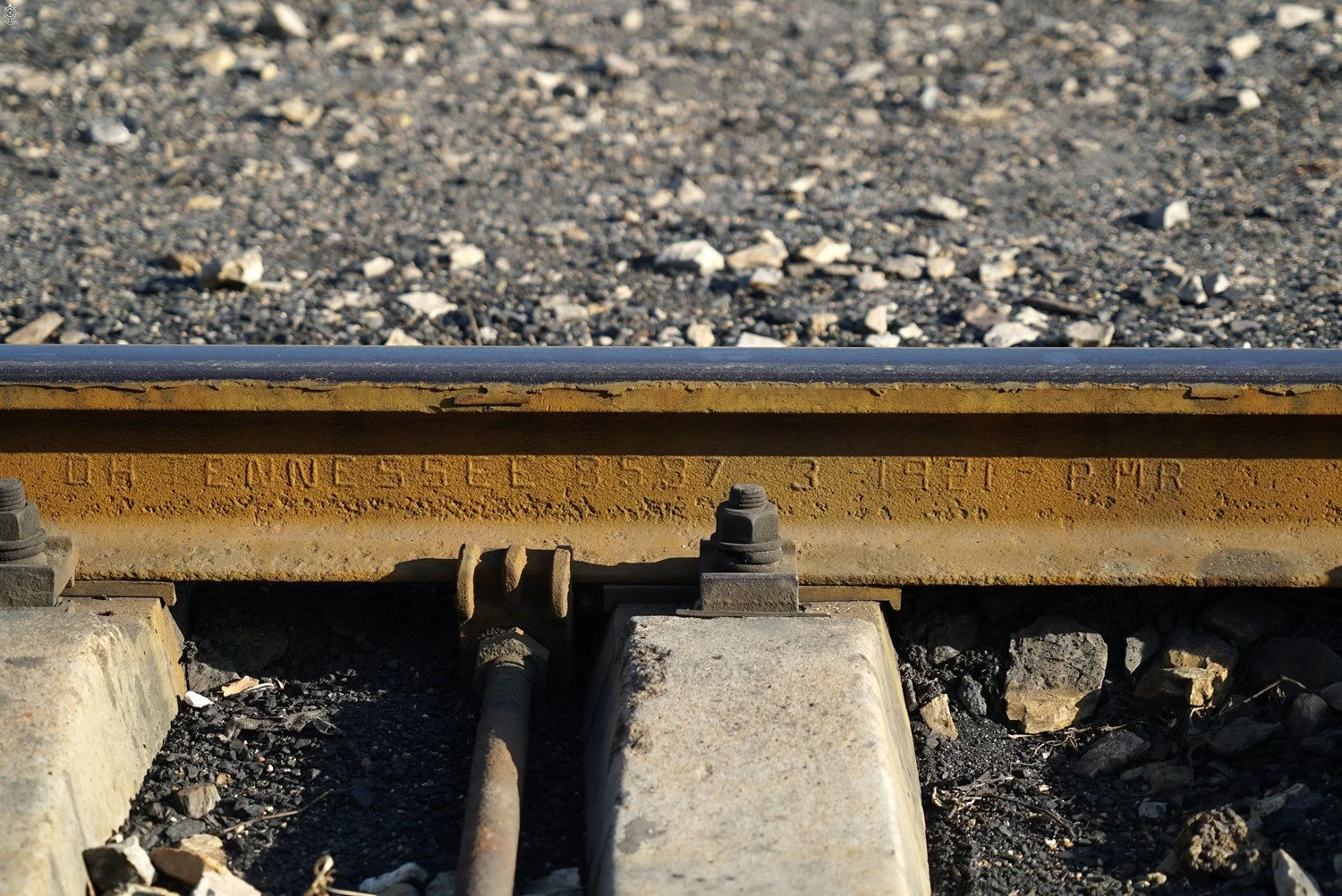

OH - TENNESSEE - 8587 - 3 - 1921 - PMR
An 85 lb/yd (42 kg/m) rail manufactured by the Tennessee Coal, Iron and Railroad Company in March 1921 for the Peking–Mukden Railway. Photographed at Nanpiao in November 2019.

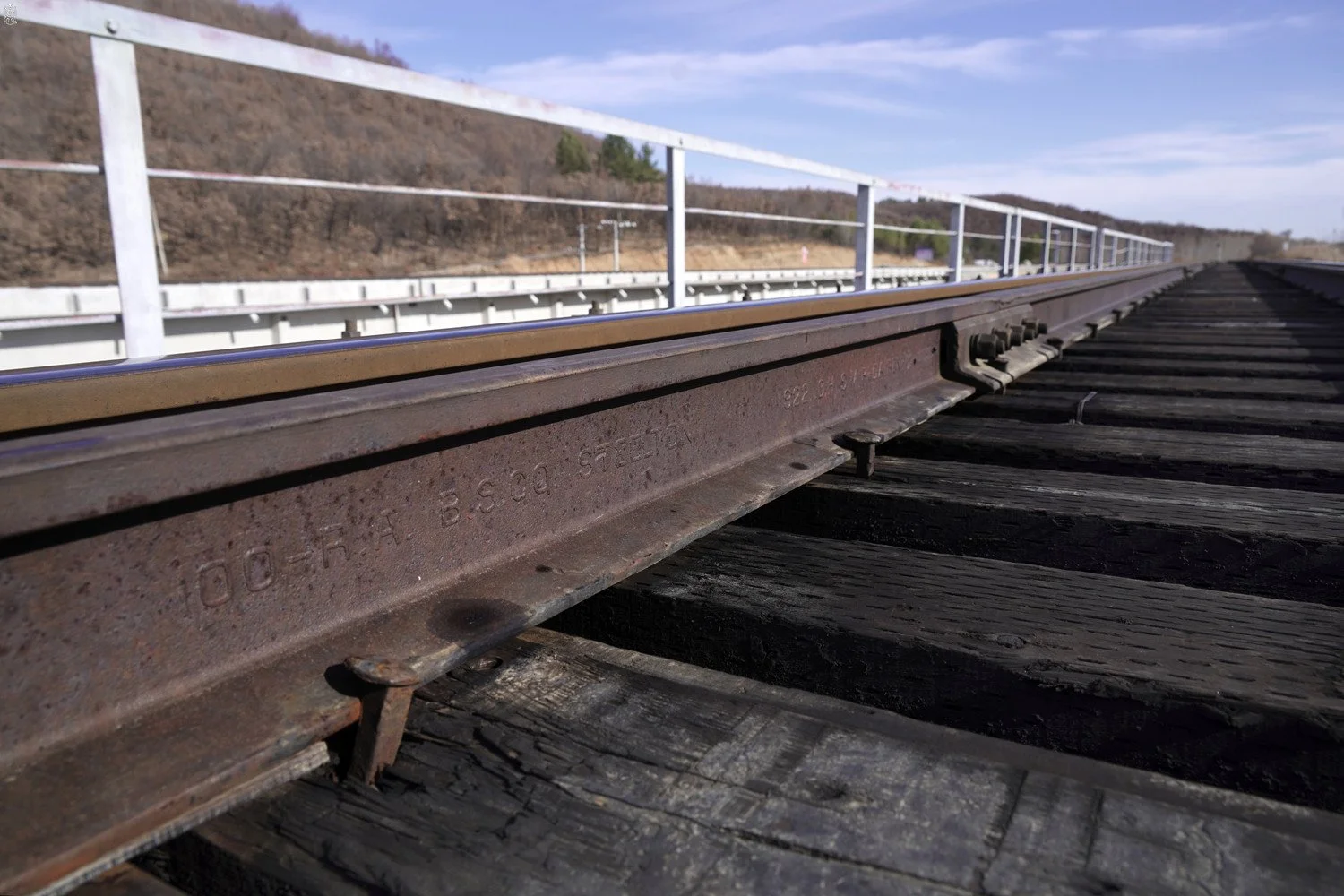

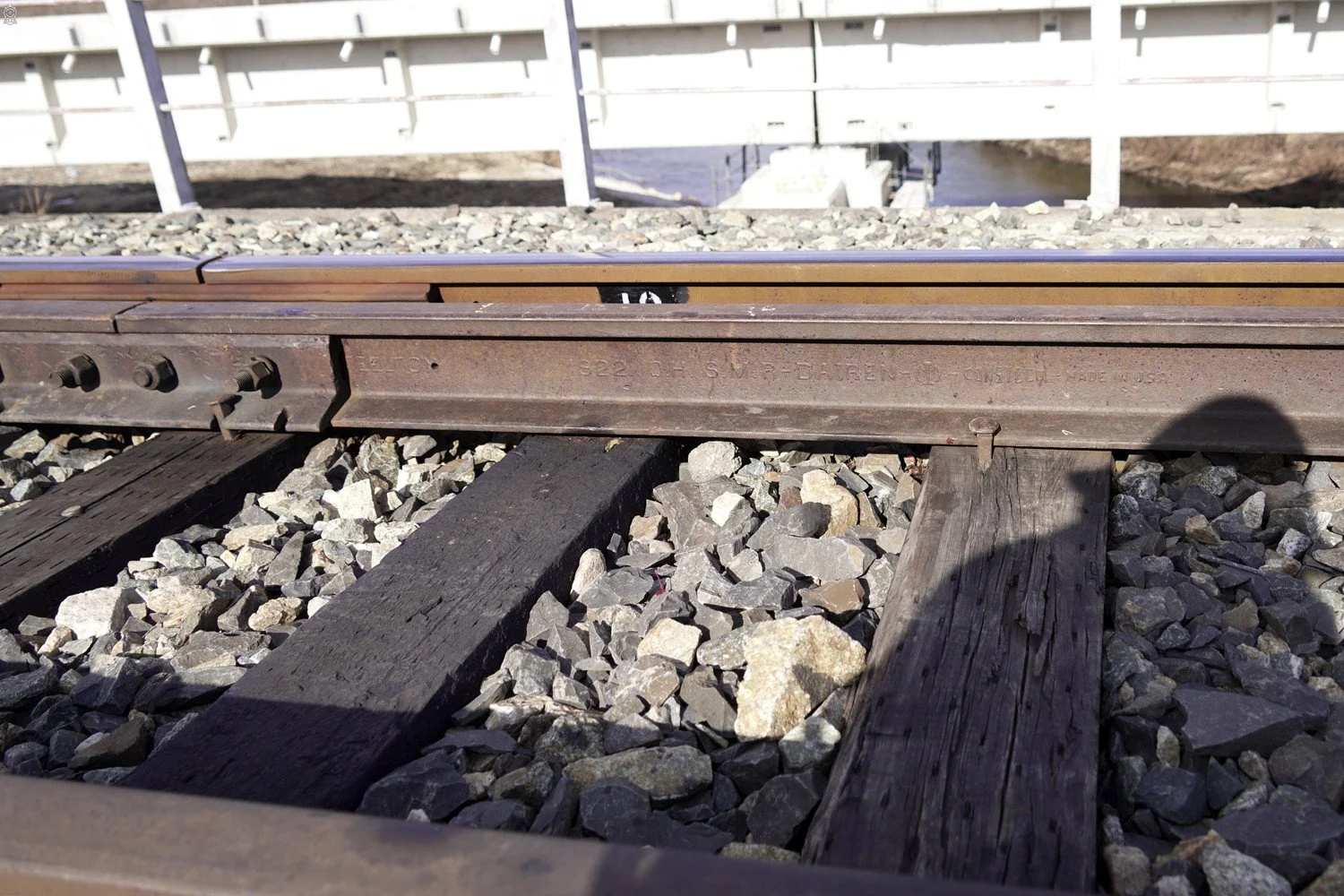

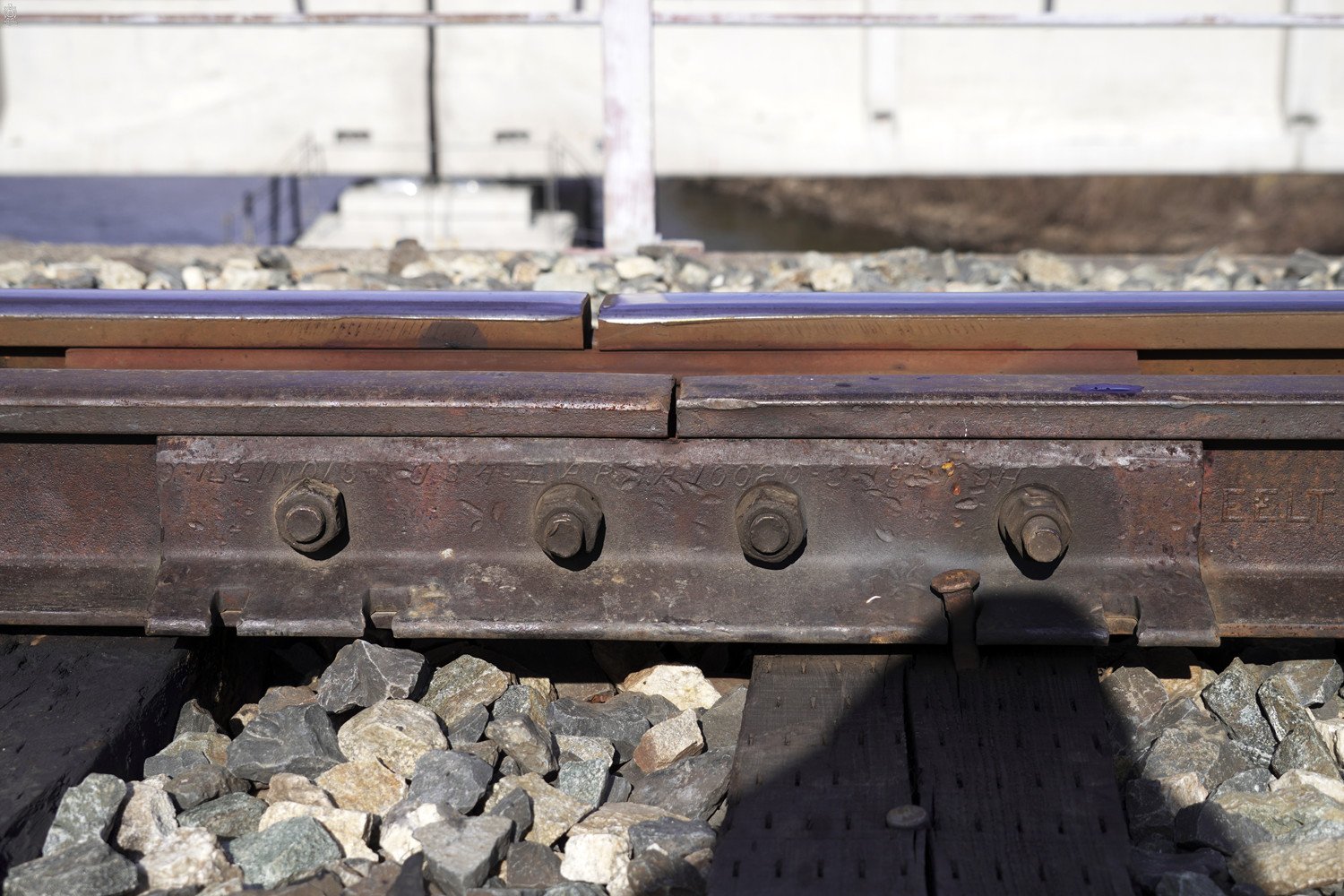

ILLINOIS U.S.A I.A.P.A.A 10020-3-1921-OH
A fishplate manufactured by the Illinois Steel Company in March 1921 for use with 100 lb/yd (50 kg/m) rails. Photographed on the Lüshen–Jinhe section of the BeiAn - Heihe Railway in October 2021.

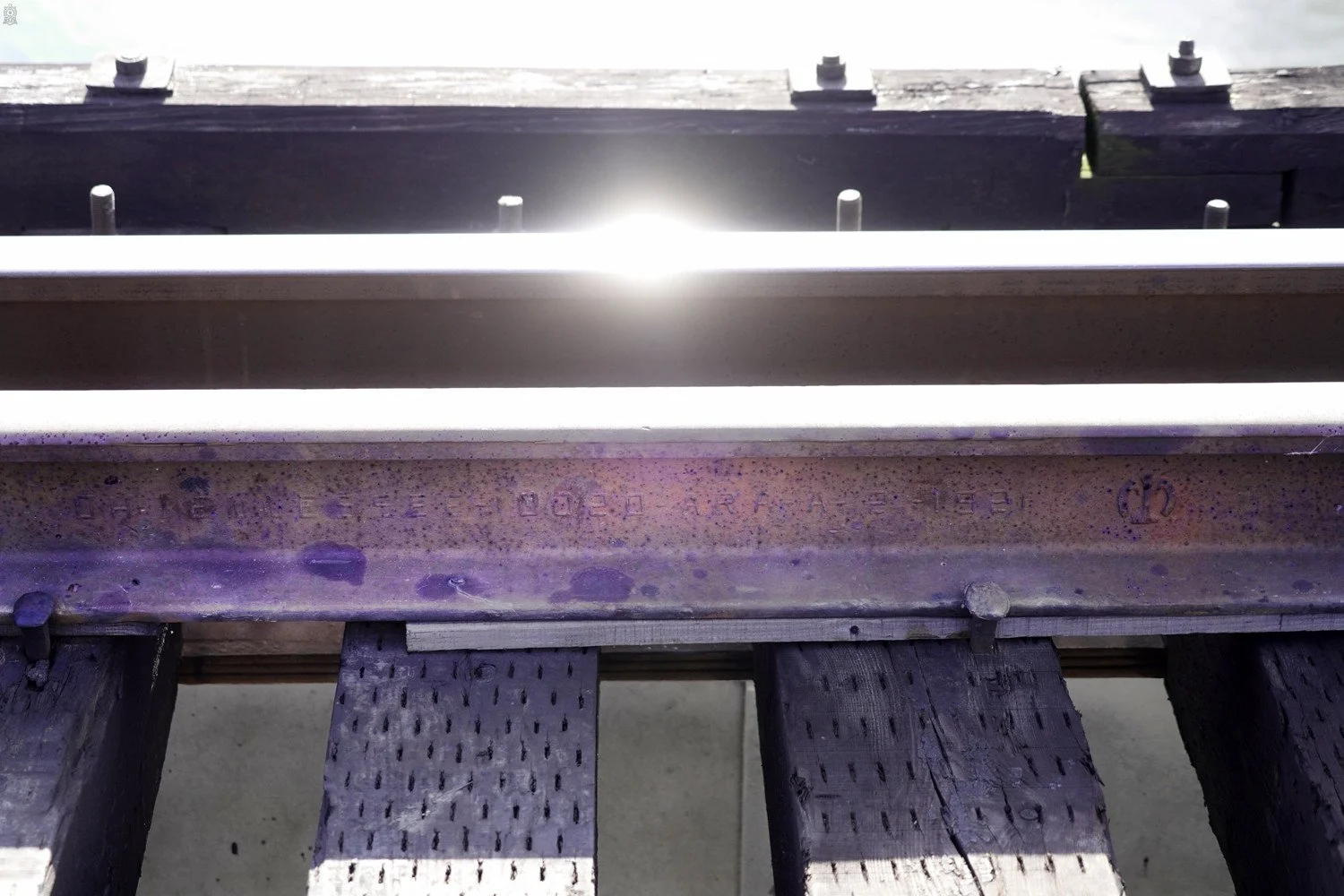

100 - R.A. B.S.CO STEELTON III 1922. O.H. S.M.R - DAIREN - (SMR emblem) - CONSTECO - MADE IN USA
A 100 lb/yd (50 kg/m) rail manufactured in March 1922 at Bethlehem Steel Company’s Steelton Works in Pennsylvania for the South Manchuria Railway. Photographed on the Lüshen–Jinhe section of the BeiAn - Heihe Railway in October 2021.
OH - TENNESSEE - 8020 - ARA - A - 3 - 1927 KTR
Manufactured by the Tennessee Coal, Iron and Railroad Company in March 1927 for the Kiaochow–Tsinan Railway. Photographed at the Yiliang locomotive depot on the Yunnan–Vietnam Railway in June 2020.

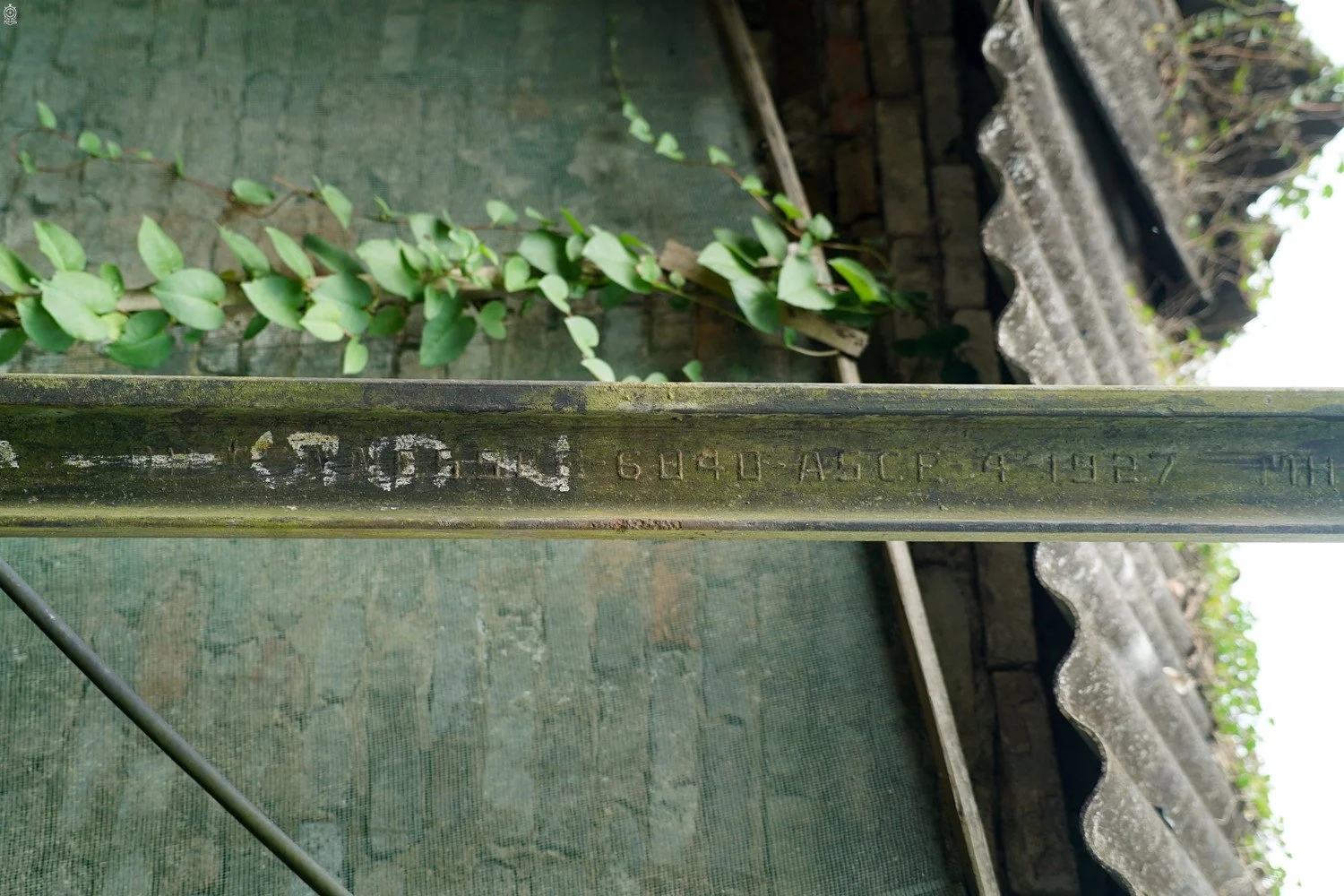

OH - TENNESSEE - 6040 - ASCE - 5 - 1927 MH
A rail manufactured by the Tennessee Coal, Iron and Railroad Company in May 1927. Photographed on the Baizhai–Wantang section of the Yunnan–Vietnam Railway in December 2019.

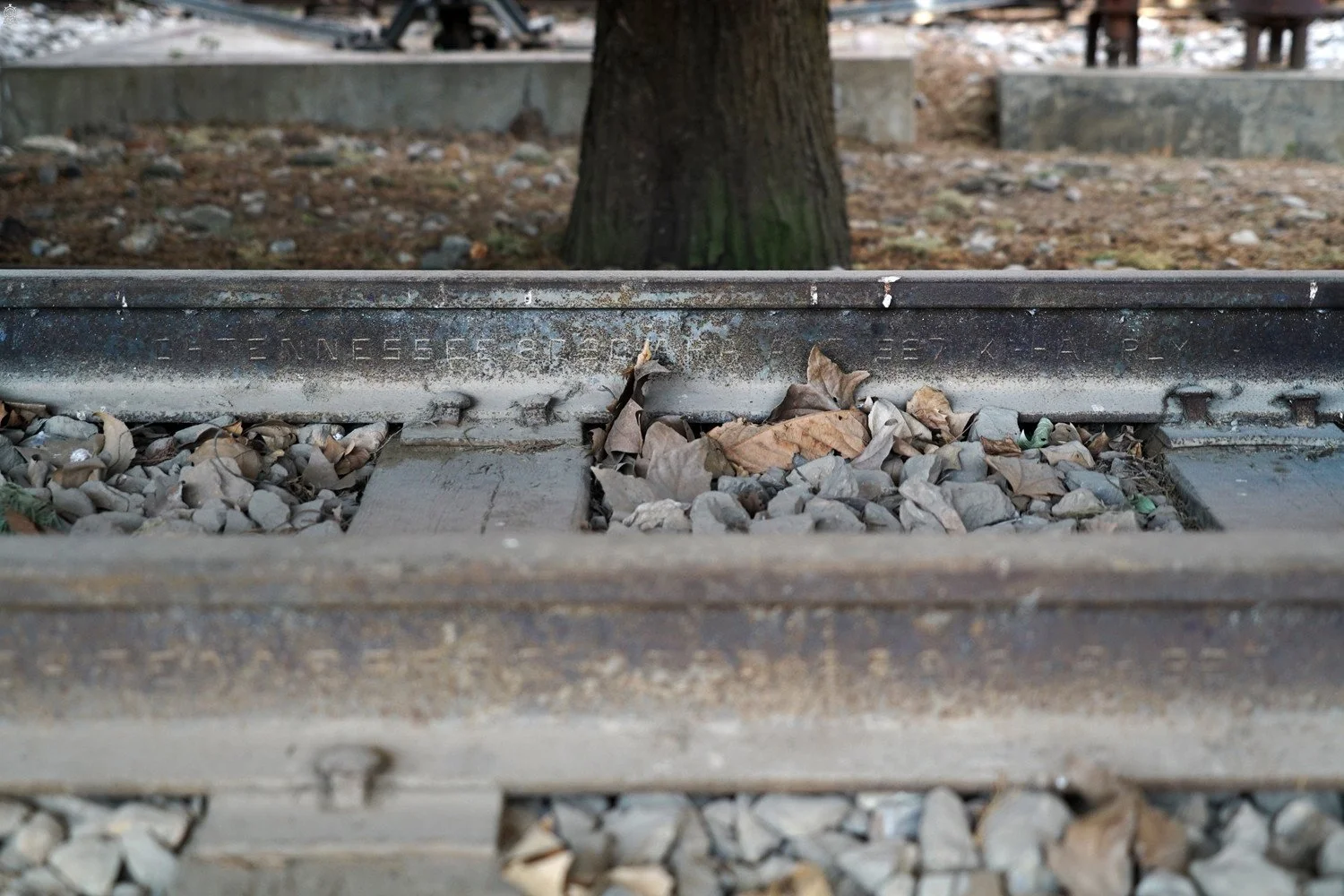

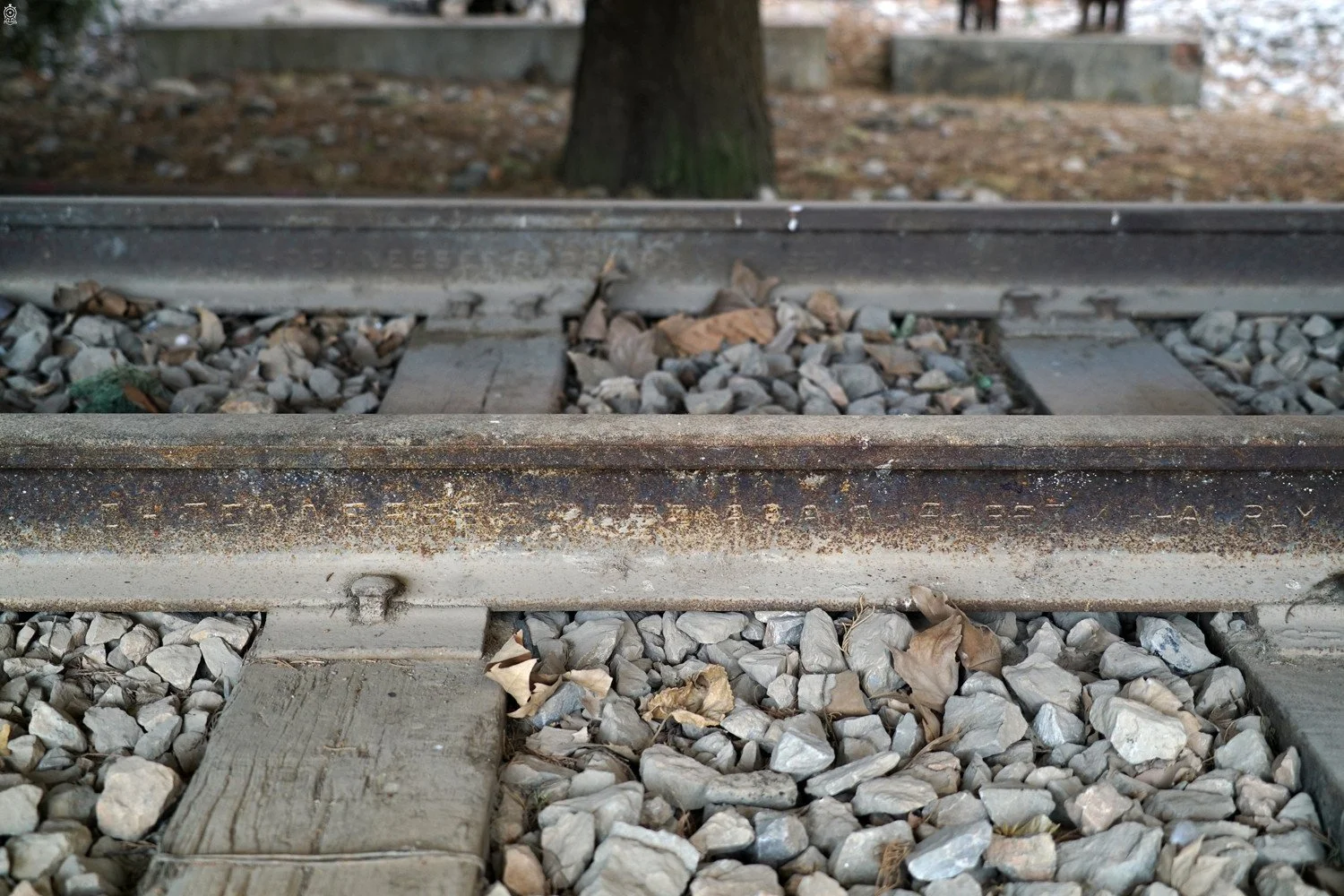

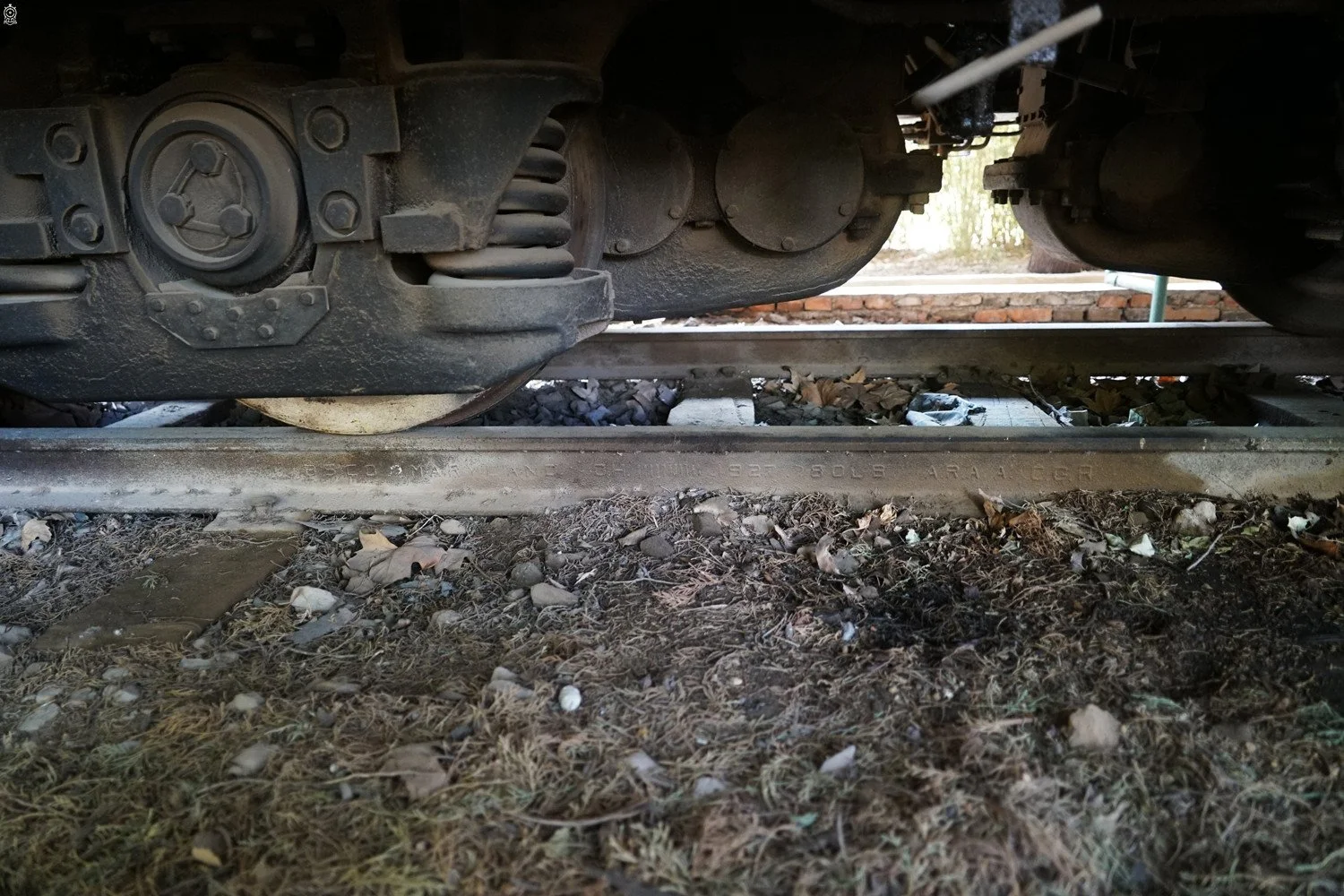

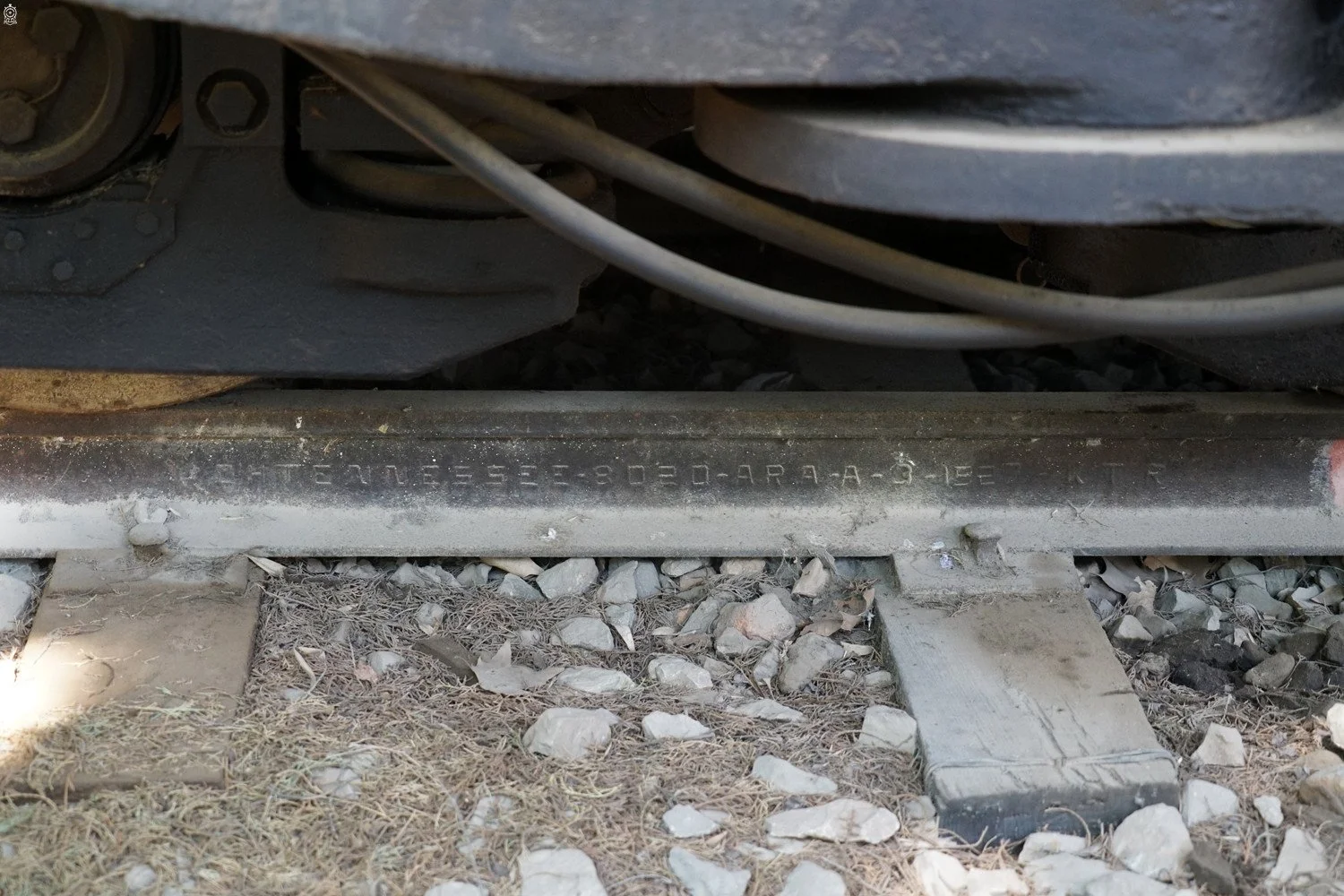

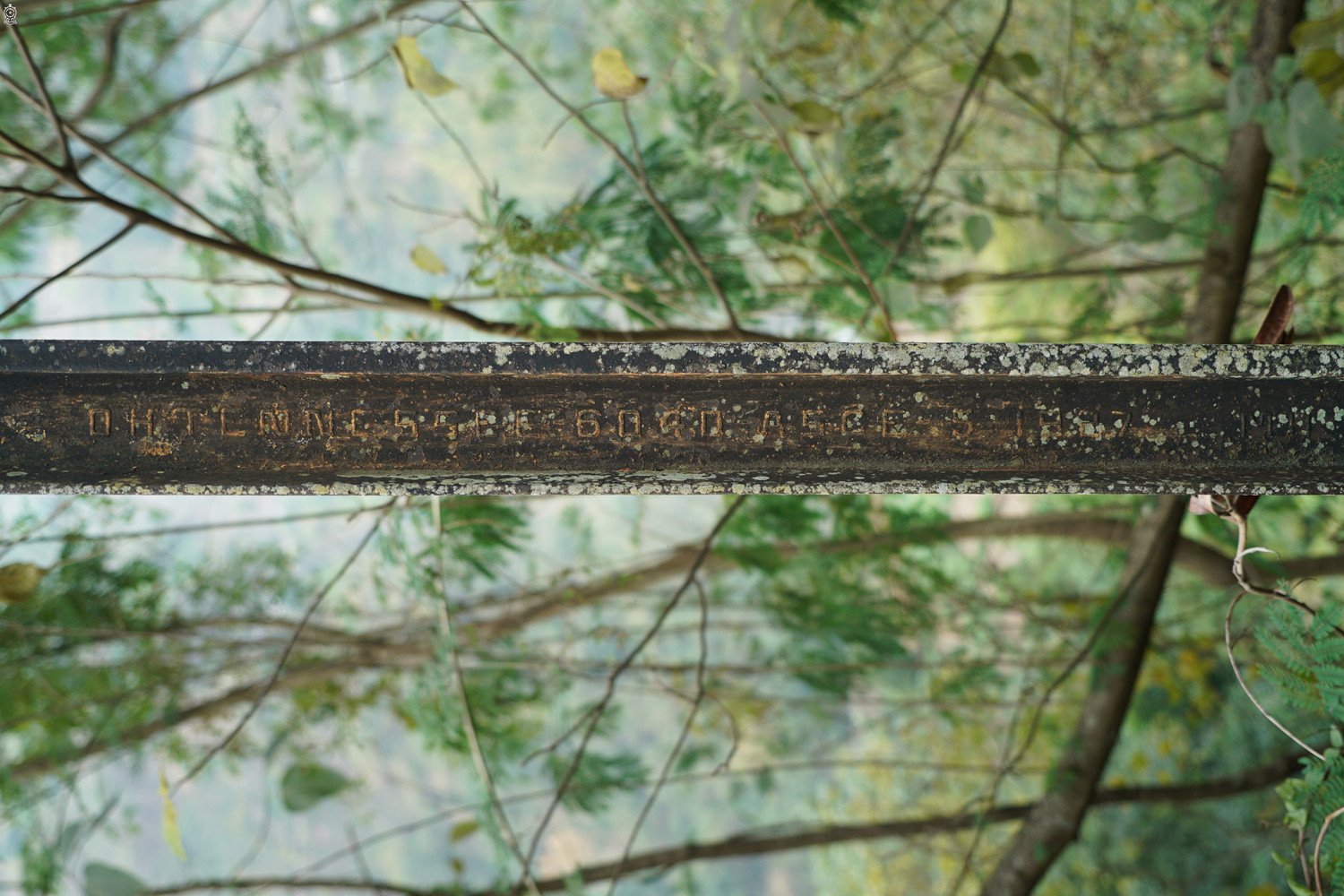

OH - TENNESSEE - 8020 - A R A - A - 2 - 1927 KI-HAN-RLY
Manufactured by the Tennessee Coal, Iron and Railroad Company in February 1927 for the Peking–Hankow Railway. Photographed at Yiliang Station on the Yunnan–Vietnam Railway in June 2020.

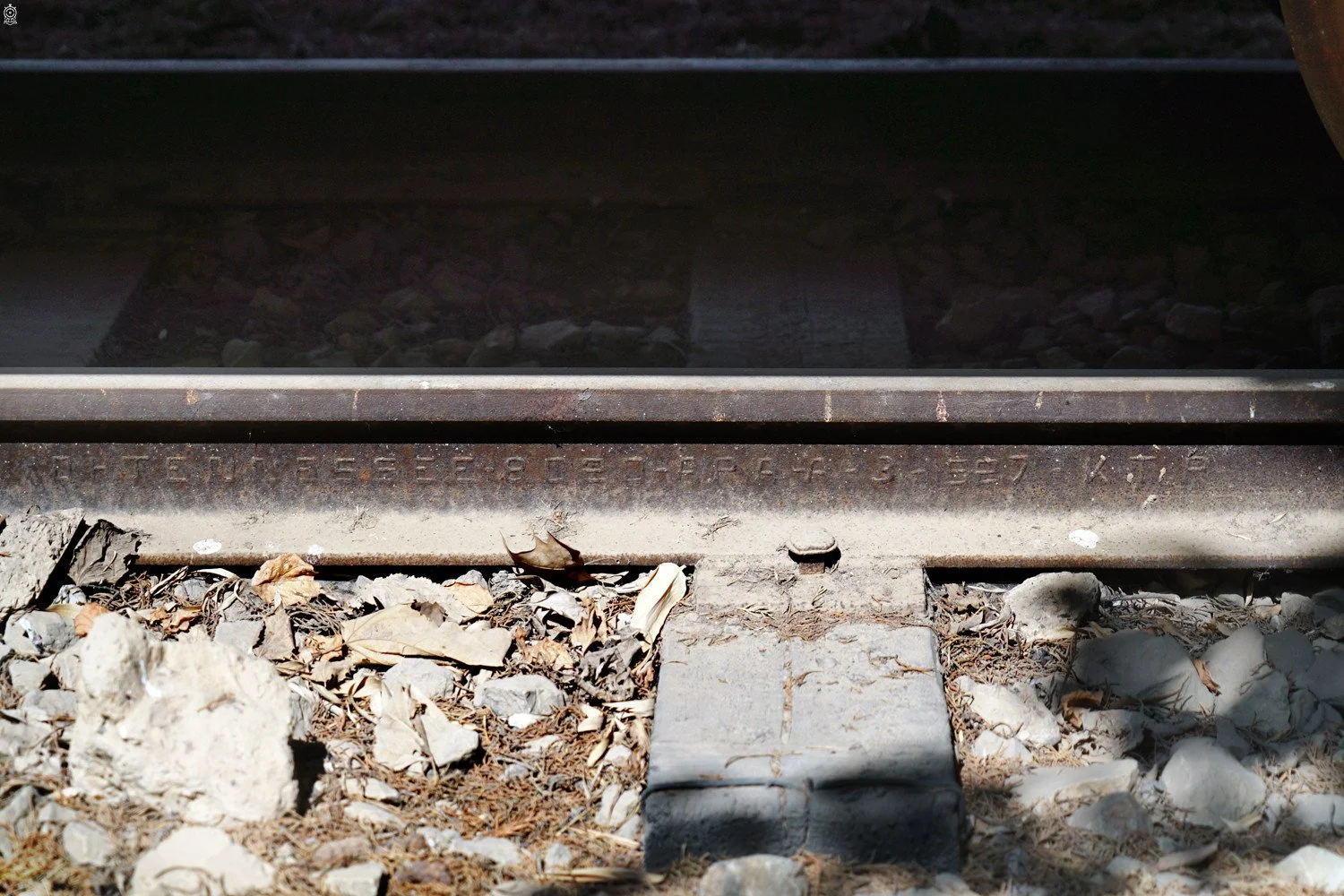

OH - TENNESSEE - 8020 - ARA - A - 3 - 1927 K T R
Manufactured by the Tennessee Coal, Iron and Railroad Company in March 1927 for the Kiaochow–Tsinan Railway. Photographed at the Yiliang locomotive depot on the Yunnan–Vietnam Railway in June 2020.

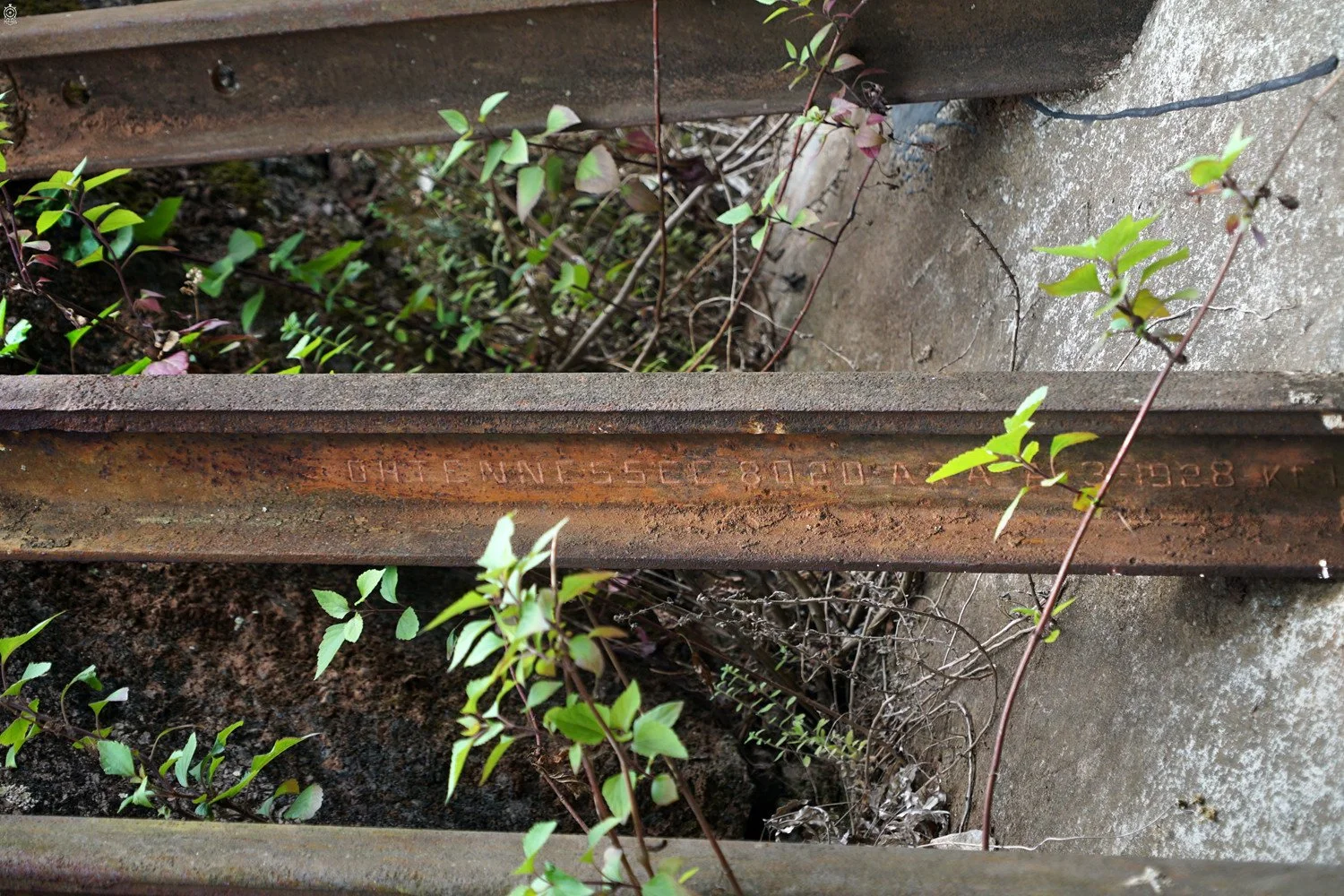

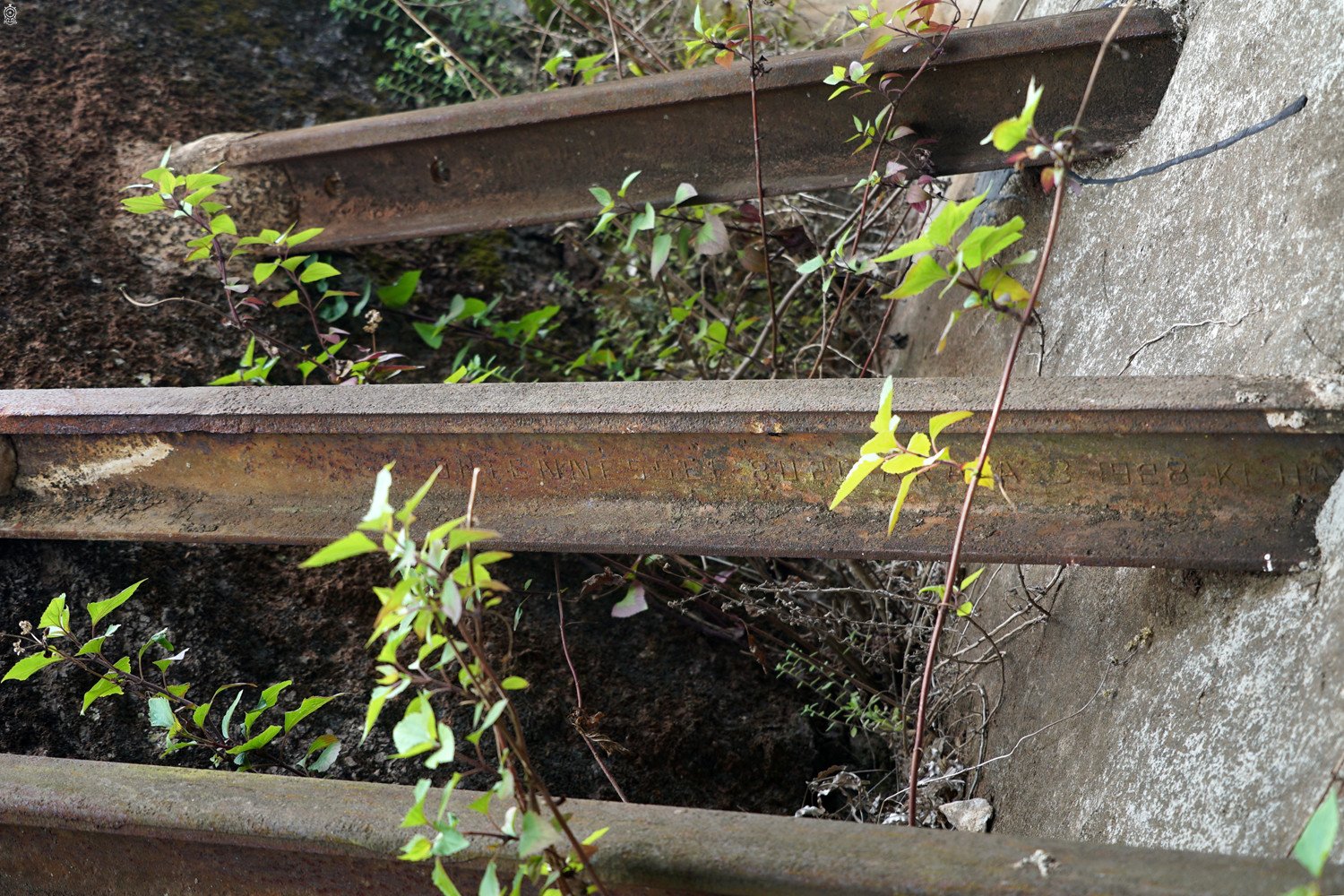

OH - TENNESSEE - 8020 - A R A - A - 2 - 1928 KI-HAN-RLY
Manufactured by the Tennessee Coal, Iron and Railroad Company in February 1928 for the Peking–Hankow Railway. Photographed on the Yangzonghai–Shuitang section of the Yunnan–Vietnam Railway in June 2020.

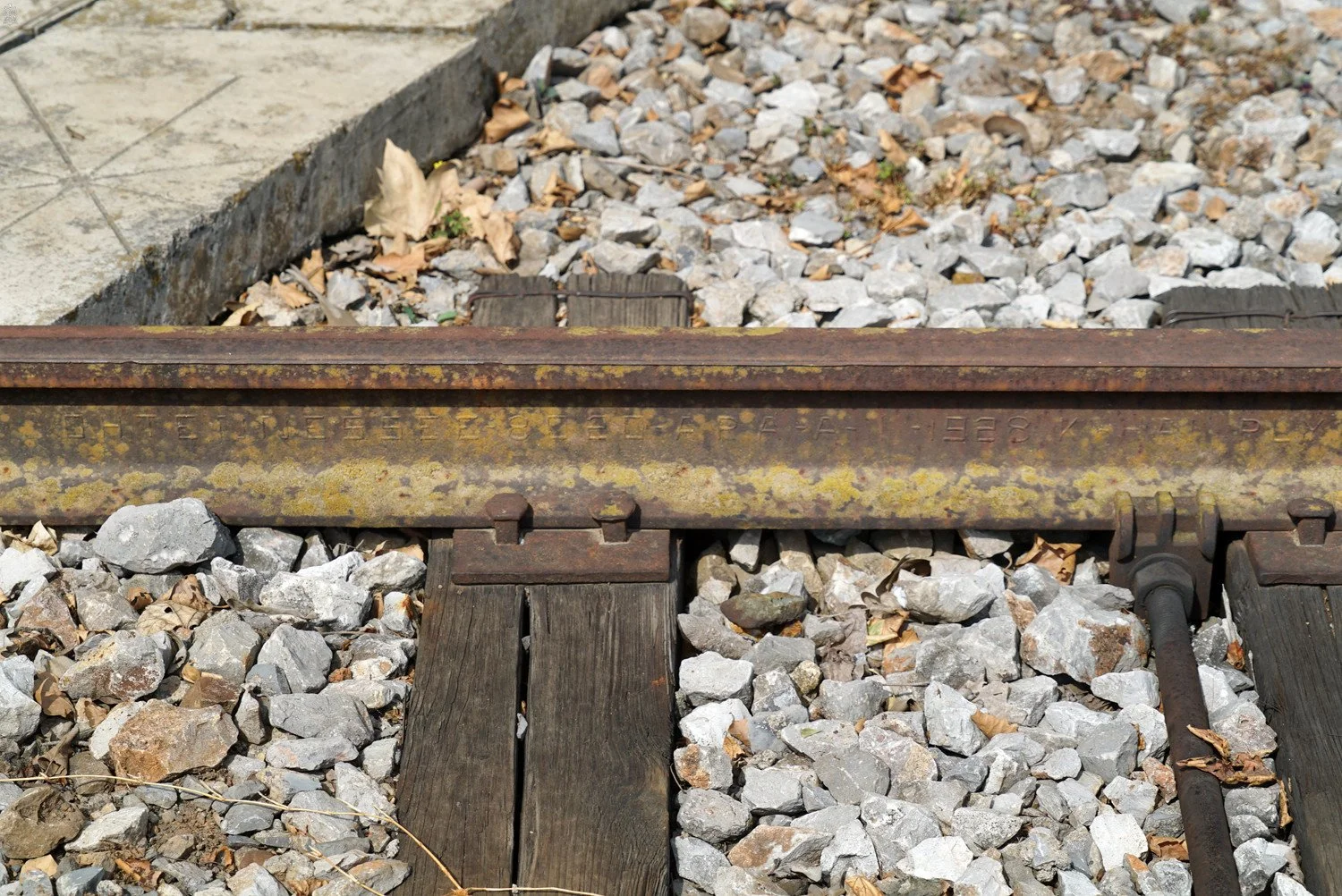

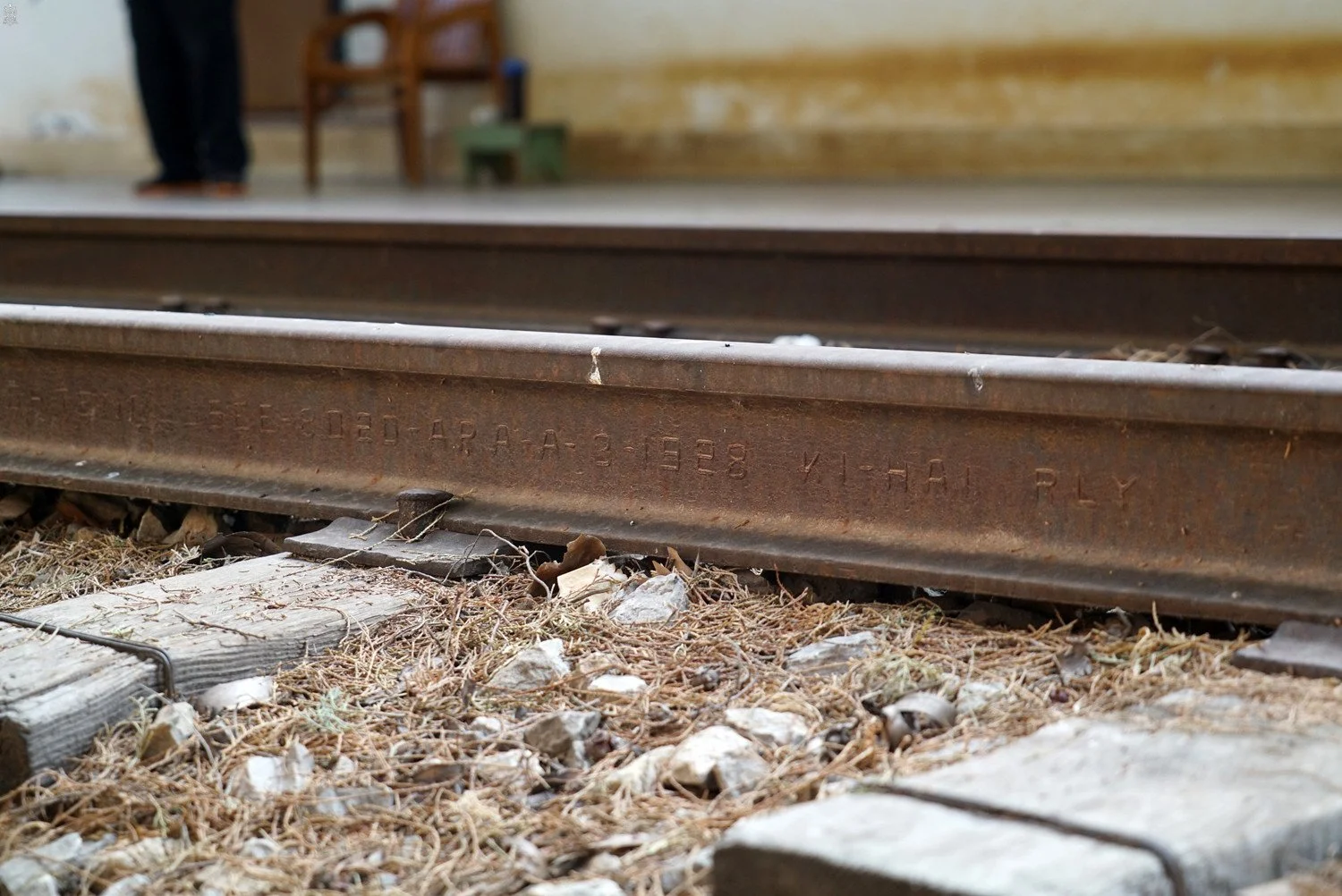

OH - TENNESSEE - 8020 - A R A - A - 2 - 1928 KI-HAN-RLY
Manufactured by the Tennessee Coal, Iron and Railroad Company in February 1928 for the Peking–Hankow Railway. Photographed at Yiliang Station on the Yunnan–Vietnam Railway in June 2020.

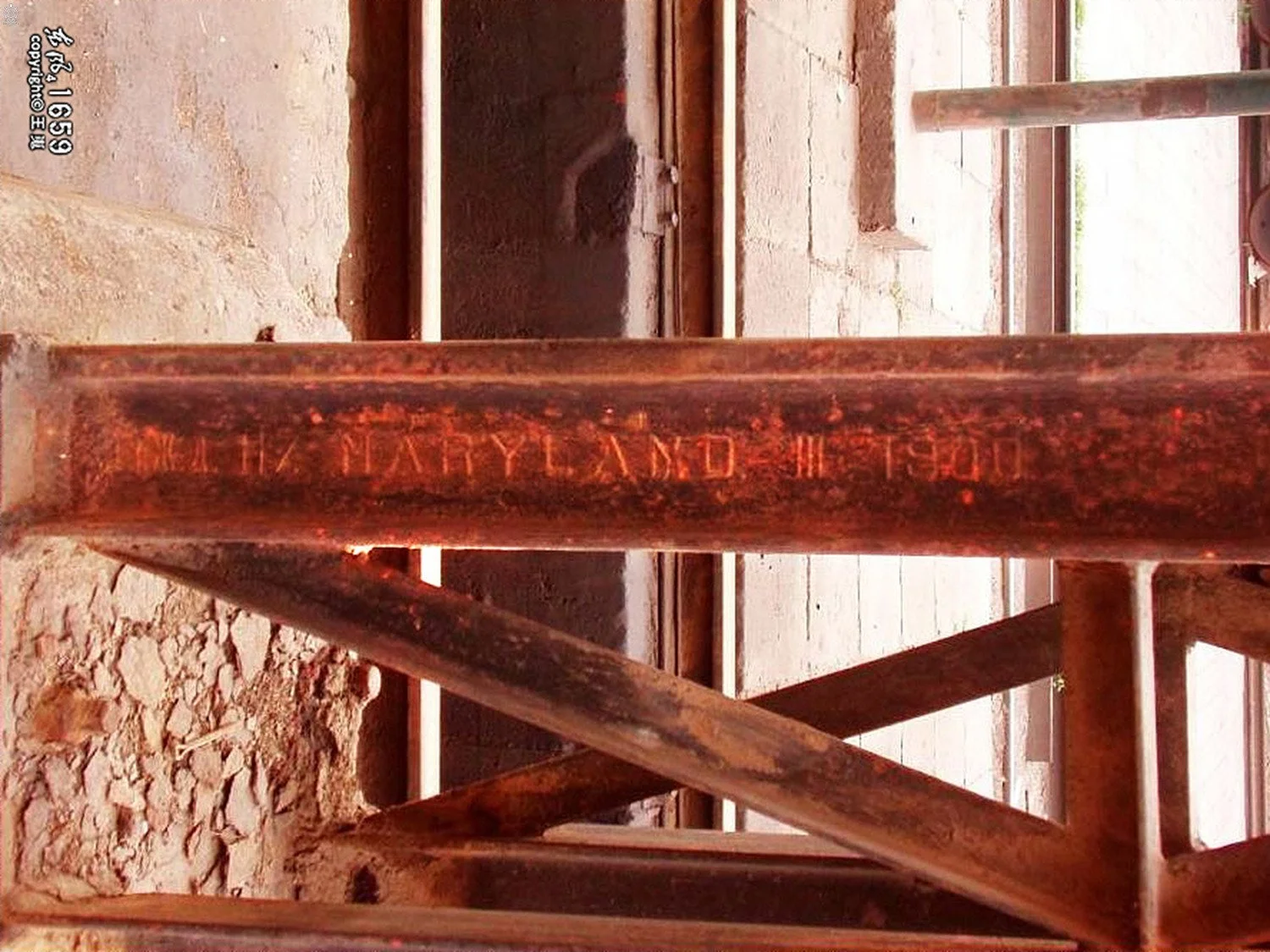

KBжд. 117. MARYLAND.III.1900.
Manufactured by the Maryland Steel Company in March 1900 for the Chinese Eastern Railway. The rail weighs 85 lb/yd (42 kg/m) and was originally used on the Chinese Eastern Railway. Photographed at the Xizhimen depot in Beijing in July 2005.
KBжд. 117. MARYLAND.III.1900.
Manufactured by the Maryland Steel Company in March 1900 for the Chinese Eastern Railway. The rail weighs 85 lb/yd (42 kg/m) and was originally used on the Chinese Eastern Railway. Photographed at the historic Chinese Eastern Railway section engineer’s office in Boketu in September 2024.

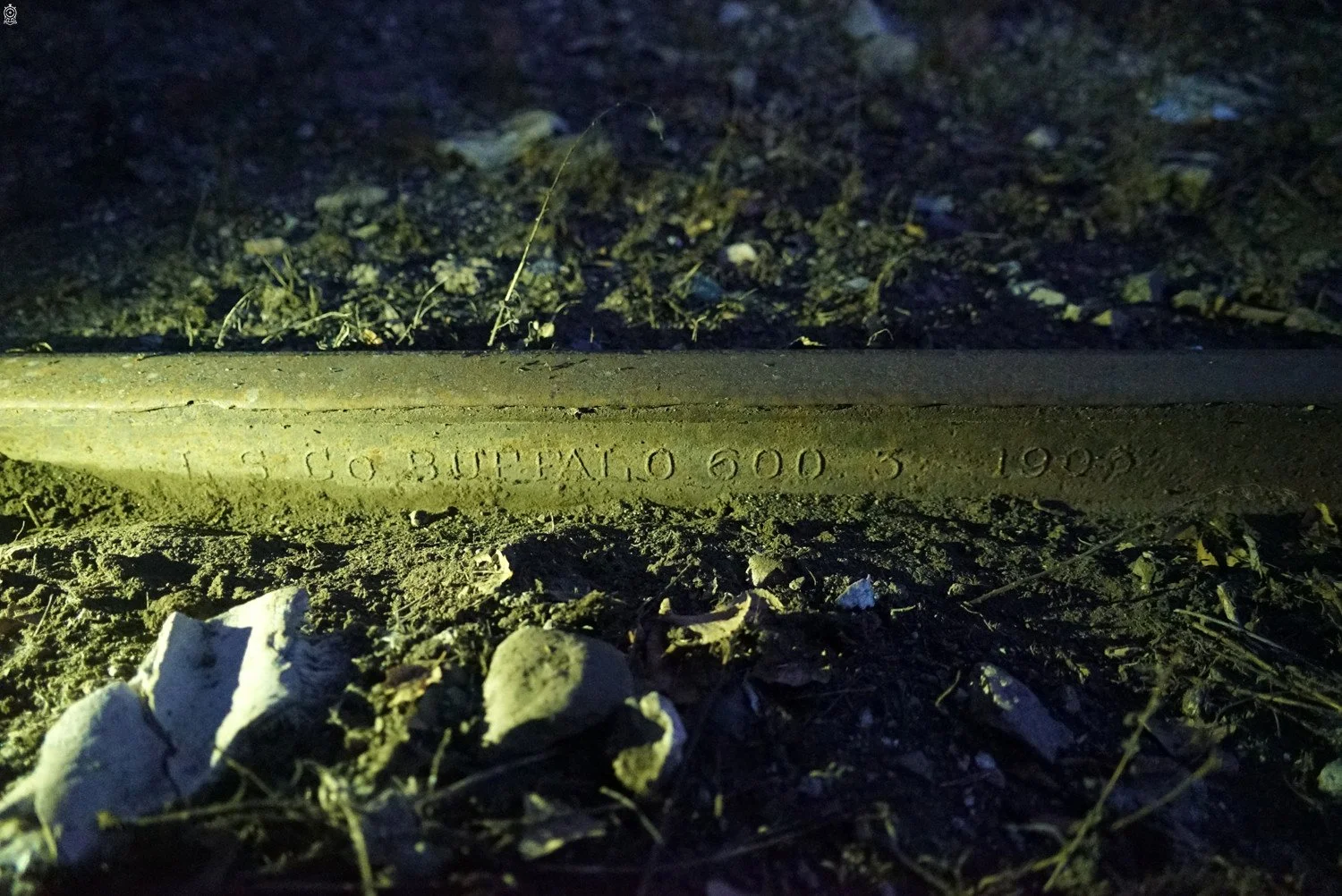

L.S.Co. BUFFALO 600.3.1906
A 28 kg/m rail manufactured by the Lackawanna Steel Company at Buffalo in 1906 for use on a Chinese railway. Photographed at the Kangzhuang engine house in December 2020.

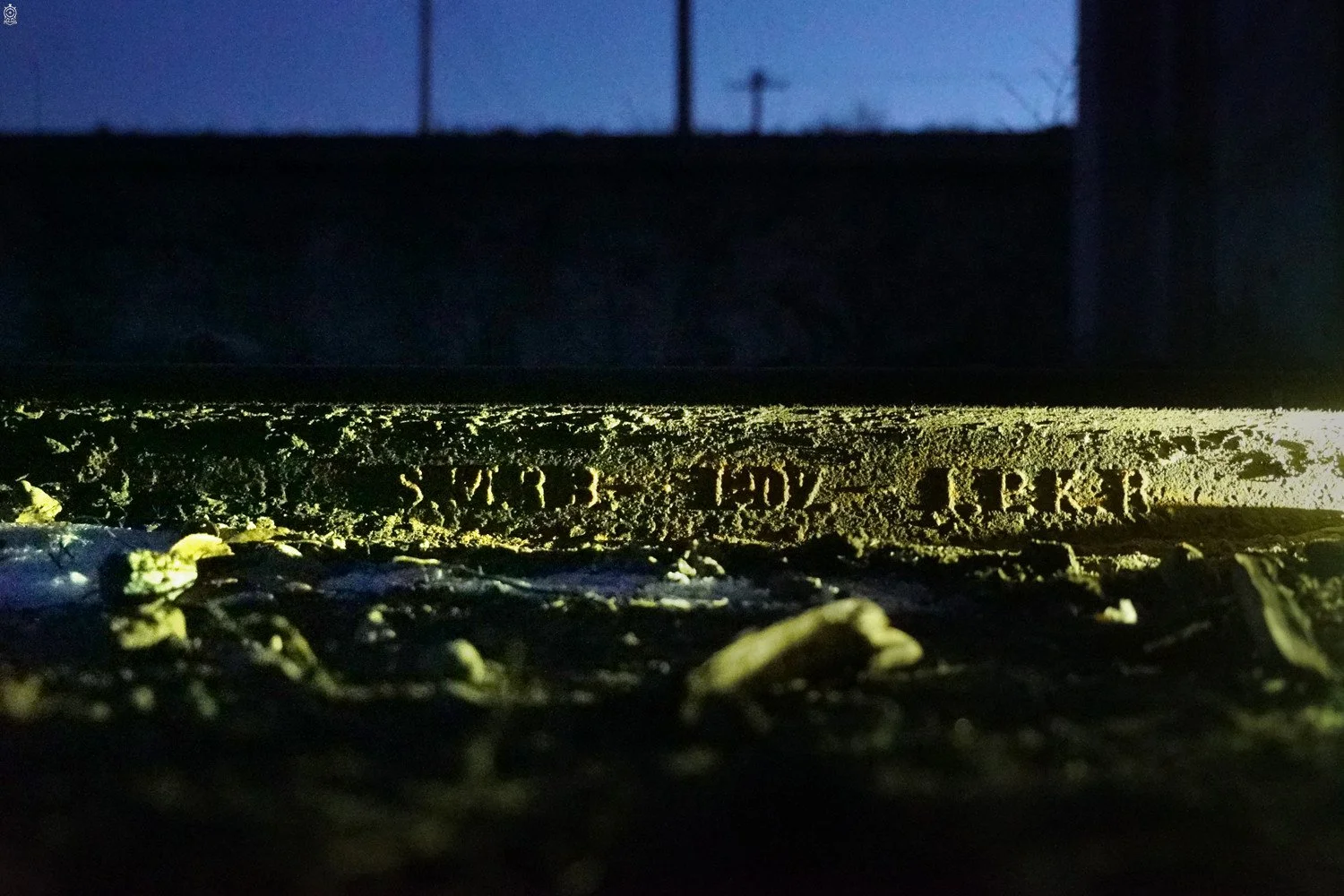

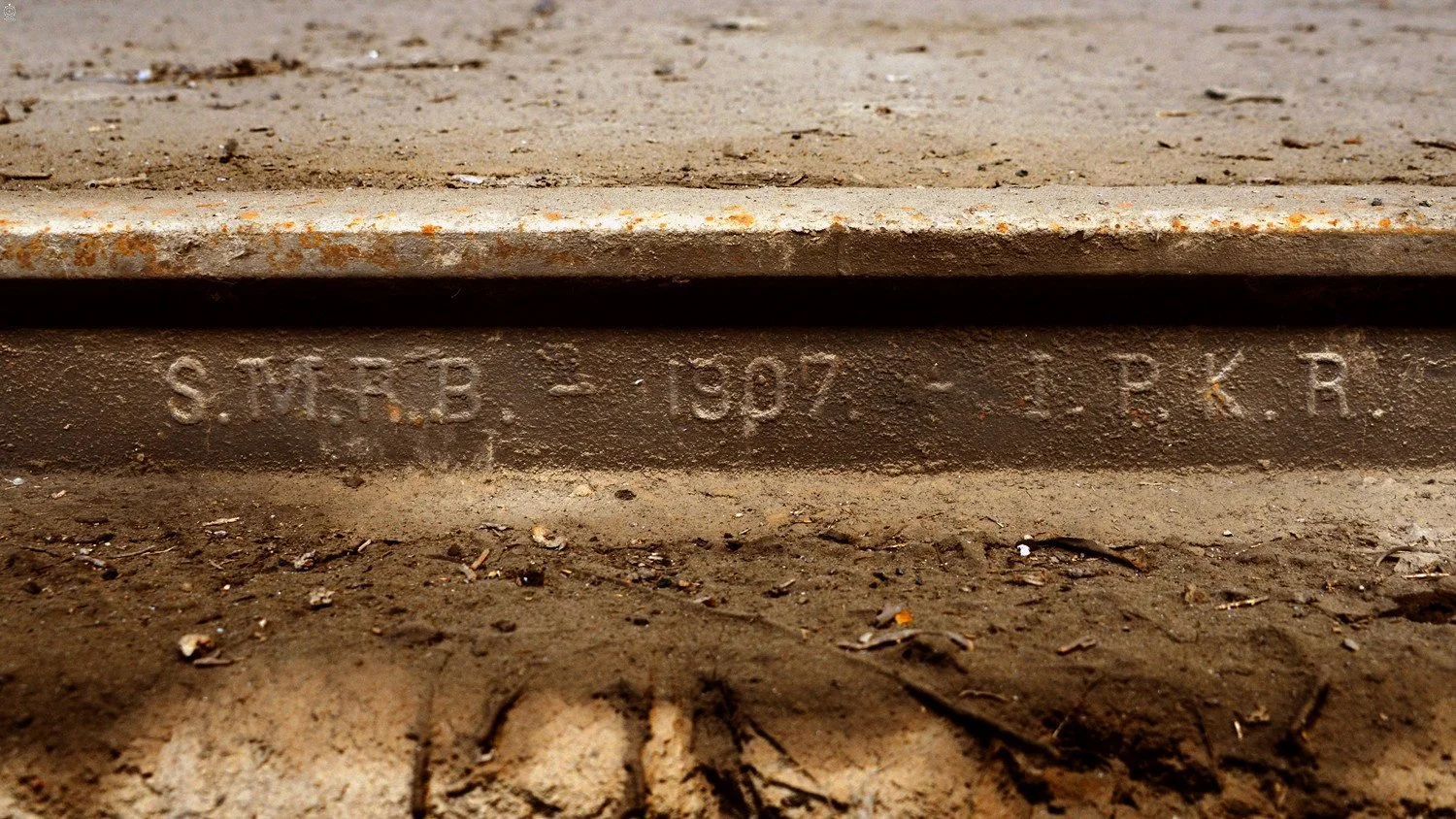

S.M.R.B - 1907 - I.P.K.R
An 85 lb/yd (42 kg/m) rail manufactured at the Steelton Works in the United States in 1907 for the Imperial Peking–Kalgan Railway. “I.P.K.R.” stands for Imperial Peking–Kalgan Railway. Photographed on the Dafu River bridge of an industrial siding in Yingcheng, Hubei, in 2021.
S.M.R.B - 1907 - I.P.K.R
An 85 lb/yd (42 kg/m) rail manufactured at the Steelton Works in the United States in 1907 for the Imperial Peking–Kalgan Railway. Photographed at the Kangzhuang engine house in December 2020.
S.M.R.B - 1907 - I.P.K.R
An 85 lb/yd (42 kg/m) rail manufactured at the Steelton Works in the United States in 1907 for the Imperial Peking–Kalgan Railway. Photographed on a storage siding at Zhangjiakou Station in June 2014.

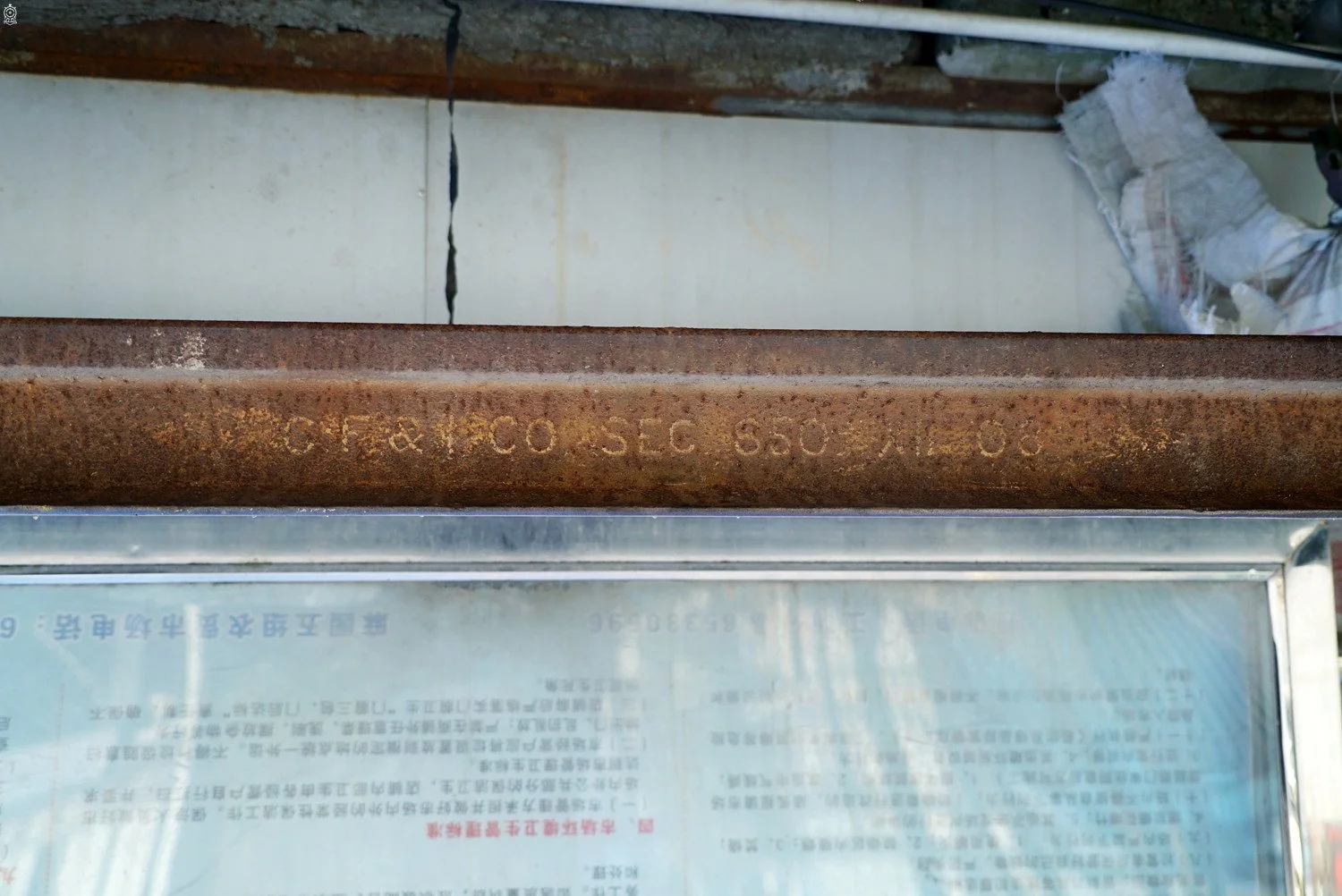

CF & I CO SEC 850 XII 08
A rail manufactured by the Colorado Fuel & Iron Company in December 1908 for use on a Chinese railway. Photographed on the Mayuan–Shizui section of the former Yunnan–Burma Railway near Kunming in December 2019.

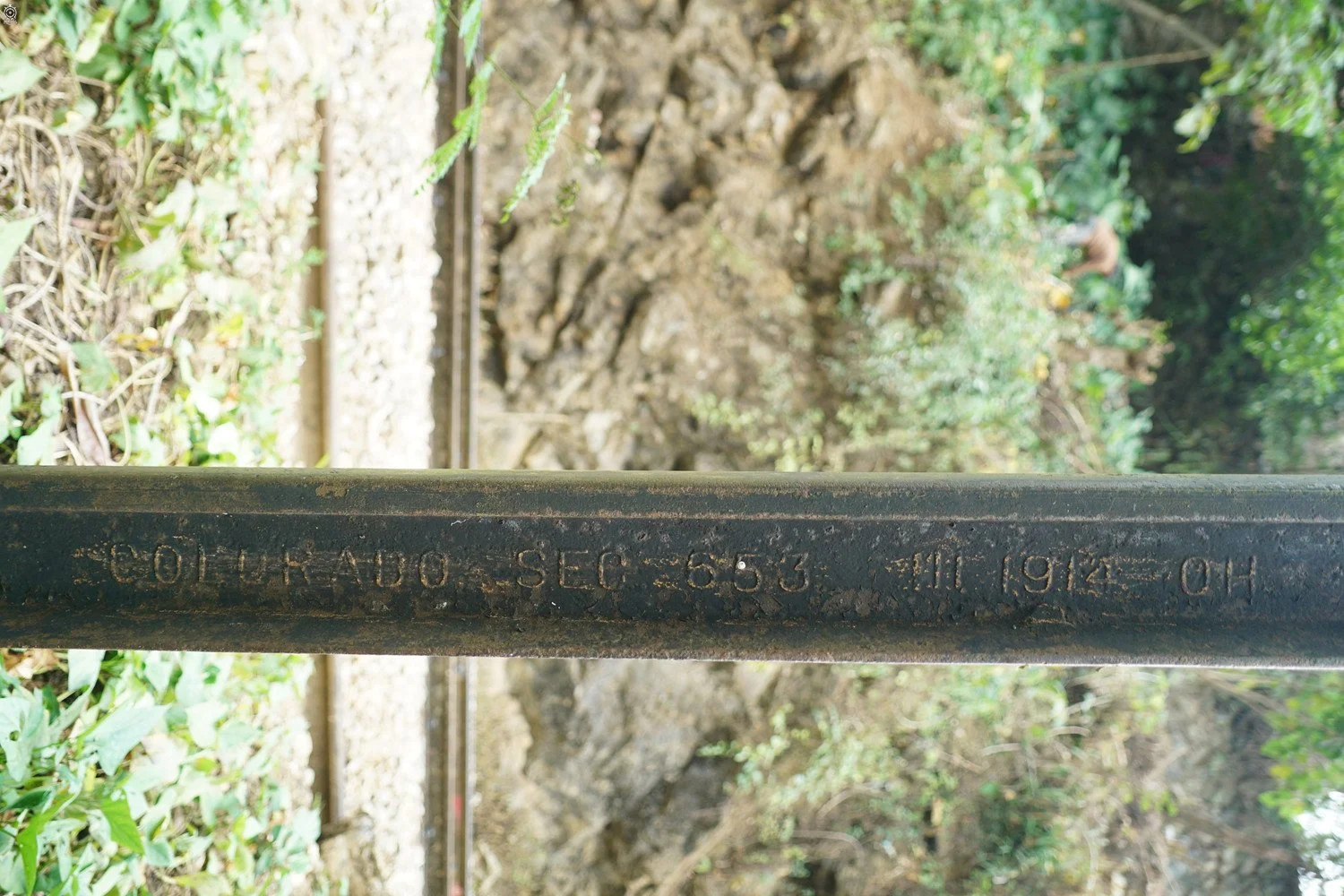

COLORADO SCE 653 III 1914 OH
A lightweight open-hearth rail manufactured by the Colorado steel works in March 1914. Photographed on the Baizhai–Wantang section of the Yunnan–Vietnam Railway in December 2019.
85 OH TENNESSEE 4 1914 PKR KINSUI
An 85 lb/yd rail manufactured by the Tennessee Coal, Iron and Railroad Company in 1914 for the Peking–Kalgan / Peking–Suiyuan Railway. It was later reused as a guard rail on a railway bridge serving a saltworks siding. The lettering on this rail differs from that on other rails from the same batch, although the section and weight are identical. Photographed in Yingcheng, Hubei, in January 2021.

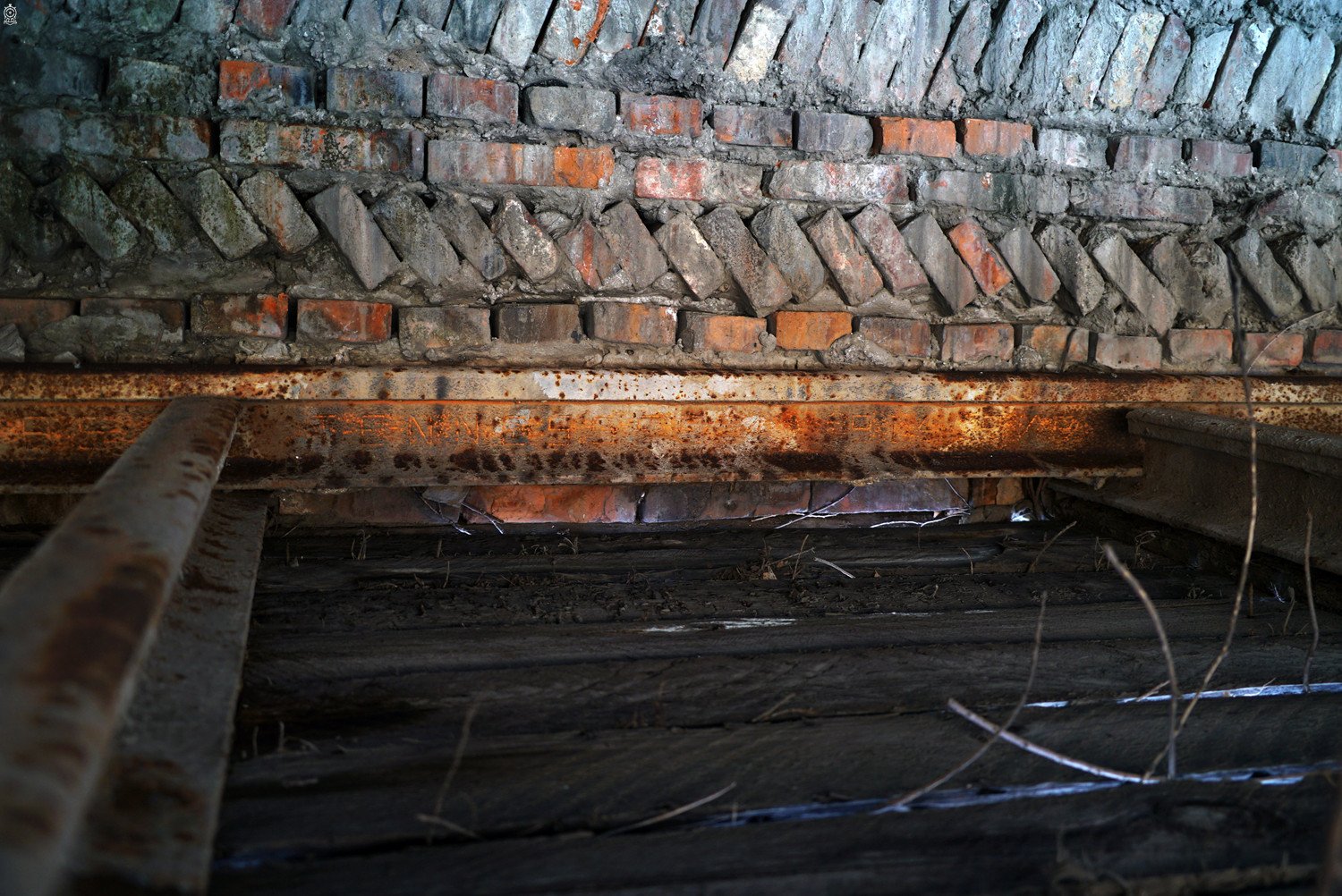

85 OH TENNESSEE 4 1914 PKR KINSUI
An 85 lb/yd rail manufactured by the Tennessee Coal, Iron and Railroad Company in 1914 for the Peking–Kalgan / Peking–Suiyuan Railway. After being removed from the track, it was reused as a roof beam in the western bridgehead structure of the Lugouqiao railway bridge. The structure was demolished in 2023. Photographed in March 2020.
ILLINOIS G III 1916
A rail manufactured by the Illinois Steel Company in March 1916. Photographed at the south freight yard of Zhangjiakou in June 2014.
100 - R.A. B.S.CO STEELTON III 1922. O.H. S.M.R - DAIREN - (SMR emblem) - CONSTECO - MADE IN USA
A 100 lb/yd (50 kg/m) rail manufactured in March 1922 at Bethlehem Steel Company’s Steelton Works in Pennsylvania for the South Manchuria Railway. Photographed on the Lüshen–Jinhe section of the Beihei Railway in October 2021.

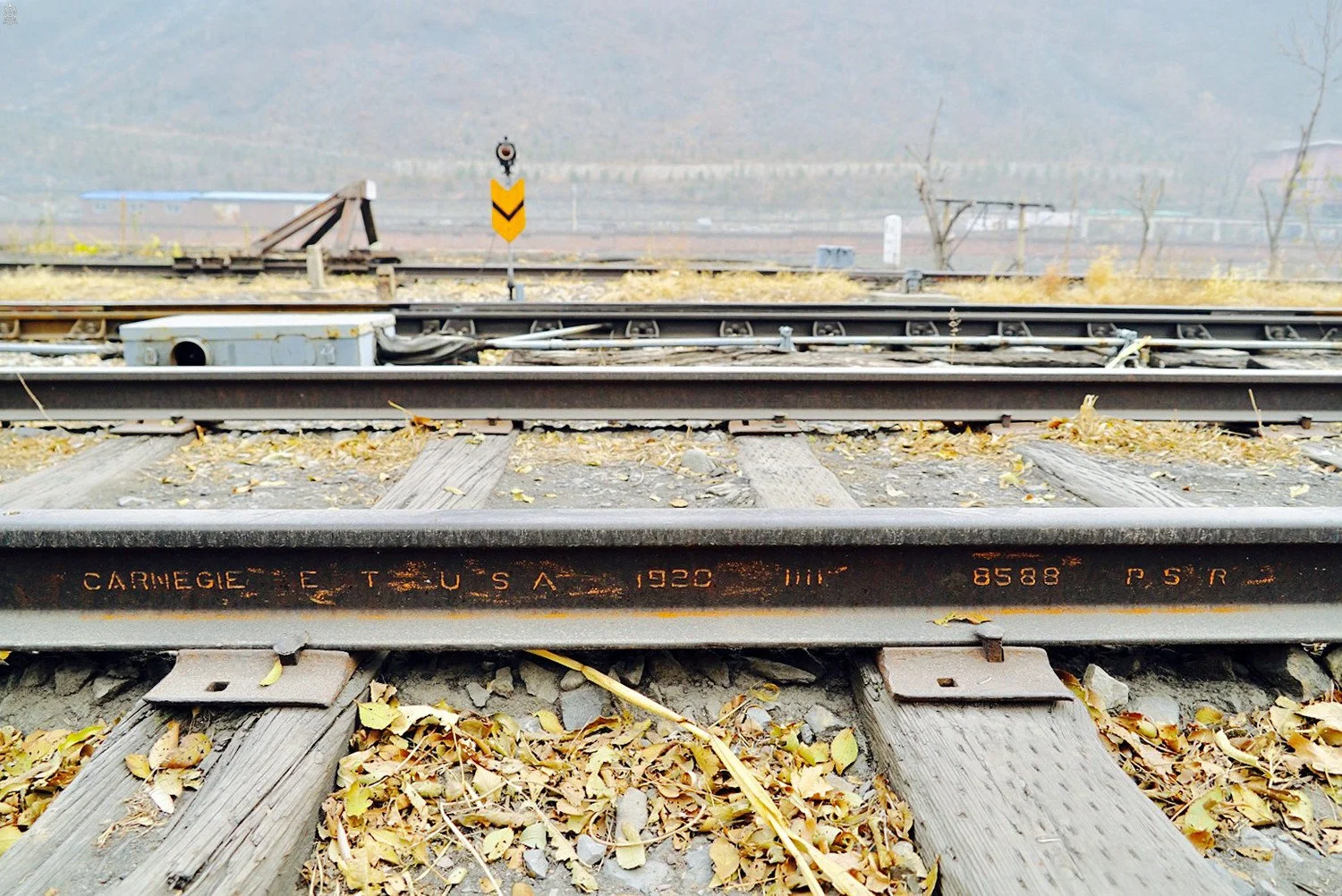

CARNEGIE E T U S A 1920 IIII 8588 P.S.R
An 85 lb/yd (42 kg/m) rail manufactured by the Carnegie Steel Company of Pennsylvania in April 1920 for the Peking–Suiyuan Railway. Photographed at Datai Station in April 2018.
OH - TENNESSEE - 8587 - 3 - 1921 - PMR
An 85 lb/yd (42 kg/m) rail manufactured by the Tennessee Coal, Iron and Railroad Company in March 1921 for the Peking–Mukden Railway. Photographed at Nanpiao in November 2019.
OH - TENNESSEE - 10020 - A R A - A - 2 - 1921
A 100 lb/yd (50 kg/m) rail manufactured by the Tennessee Coal, Iron and Railroad Company in February 1921 for the South Manchuria Railway. Photographed on the Lüshen–Jinhe section of the Beihei Railway in October 2021.
OH - TENNESSEE - 6040 - ASCE - 4 - 1927 MH
A rail manufactured by the Tennessee Coal, Iron and Railroad Company in April 1927. Photographed on the Baizhai–Wantang section of the Yunnan–Vietnam Railway in December 2019.
OH - TENNESSEE - 8020 - A R A - A - 2 - 1927 KI-HAN-RLY
Manufactured by the Tennessee Coal, Iron and Railroad Company in February 1927 for the Peking–Hankow Railway. Photographed at Yiliang Station on the Yunnan–Vietnam Railway in June 2020.
OH - TENNESSEE - 8020 - ARA - A - 3 - 1927 KTR
Manufactured by the Tennessee Coal, Iron and Railroad Company in March 1927 for the Kiaochow–Tsinan Railway. Photographed at the Yiliang locomotive depot on the Yunnan–Vietnam Railway in June 2020.
B.S.CO. MARYLAND O.H. IIIIIIIIIII 1927 90LB A.R.A. A C.G.R.
An open-hearth rail manufactured by Bethlehem Steel Company’s Maryland Works in November 1927. It weighs 90 lb/yd, approximately 44.6 kg/m, and uses the A.R.A. Type A rail section. “C.G.R.” stands for Chinese Government Railways. Photographed at the Yiliang locomotive depot on the Yunnan–Vietnam Railway in June 2020.
OH - TENNESSEE - 8020 - A R A - A - 2 - 1928 KI-HAN-RLY
Manufactured by the Tennessee Coal, Iron and Railroad Company in February 1928 for the Peking–Hankow Railway. Photographed on the Yangzonghai–Shuitang section of the Yunnan–Vietnam Railway in June 2020.
OH - TENNESSEE - 8020 - A R A - A - 2 - 1928 KI-HAN-RLY
Manufactured by the Tennessee Coal, Iron and Railroad Company in February 1928 for the Peking–Hankow Railway. Photographed at Yiliang Station on the Yunnan–Vietnam Railway in June 2020.

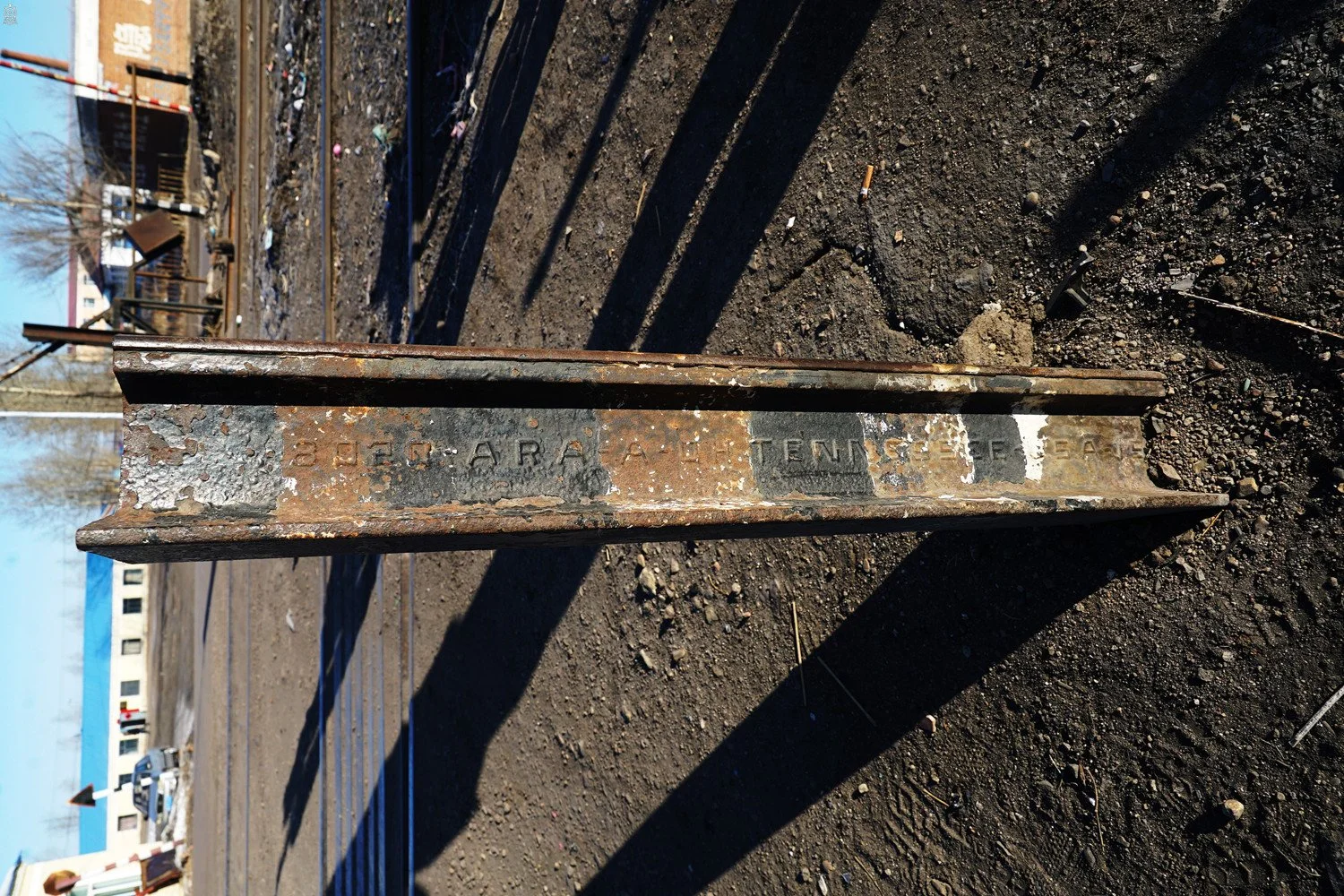

8020 - A R A - A - OH - TENNESSEE - USA - 19**
A rail manufactured by the Tennessee Coal, Iron and Railroad Company. The year is buried beneath the ground and could not be identified. Photographed at the Wujiu Coal Mine in Yakeshi in February 2019.

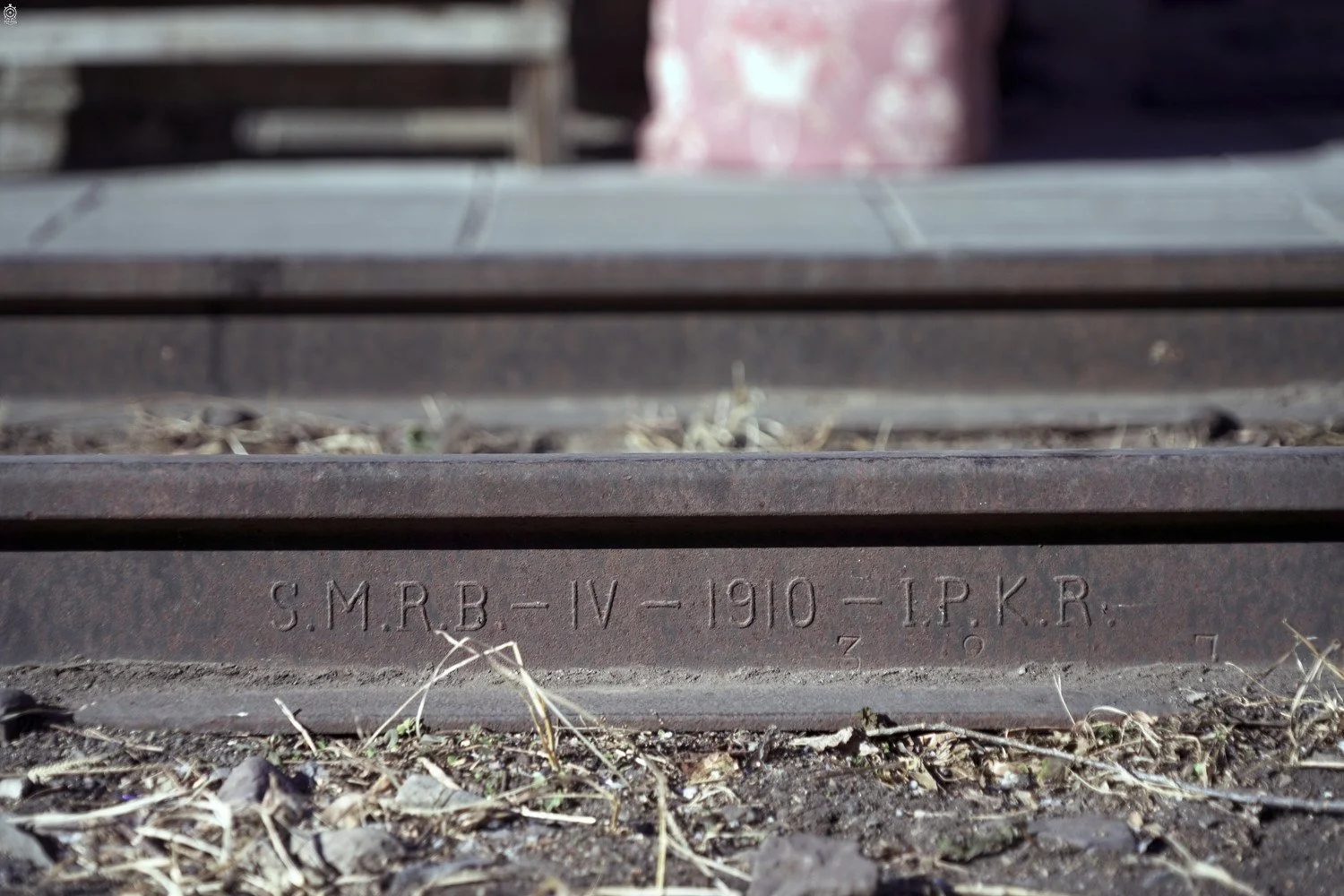

S.M.R.B - IV - 1910 - I.P.K.R
A rail manufactured at the Steelton Works in the United States in April 1910 for the Peking–Kalgan / Peking–Suiyuan Railway. It weighs 85 lb/yd (approximately 42 kg/m). Photographed at Datai Station in January 2021.

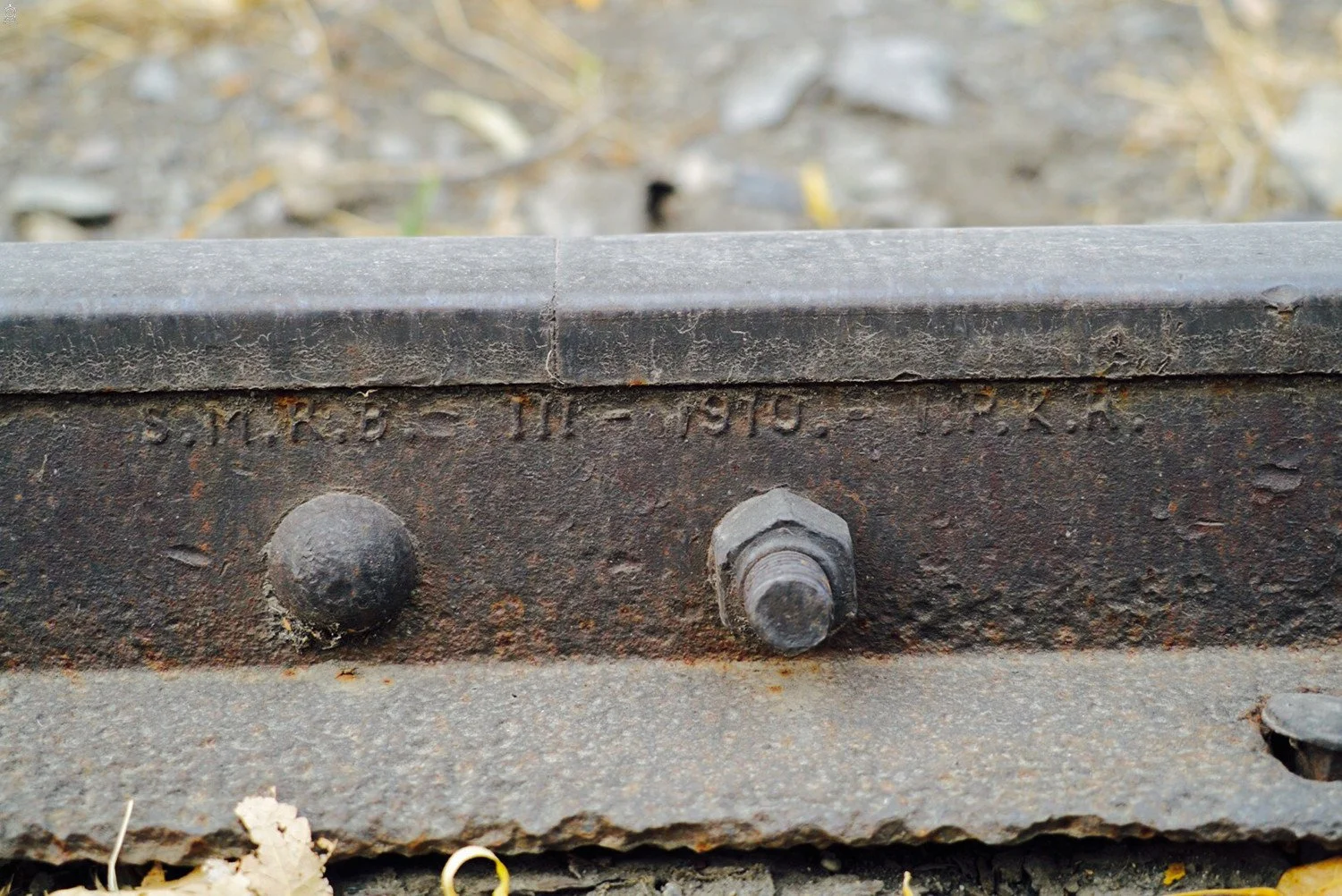

S.M.R.B - III - 1910 - I.P.K.R
A fishplate manufactured at the Steelton Works in March 1910 for 85 lb/yd (42 kg/m) rails used on the Peking–Kalgan / Peking–Suiyuan Railway. Photographed on the headshunt at Datai Station in November 2018.

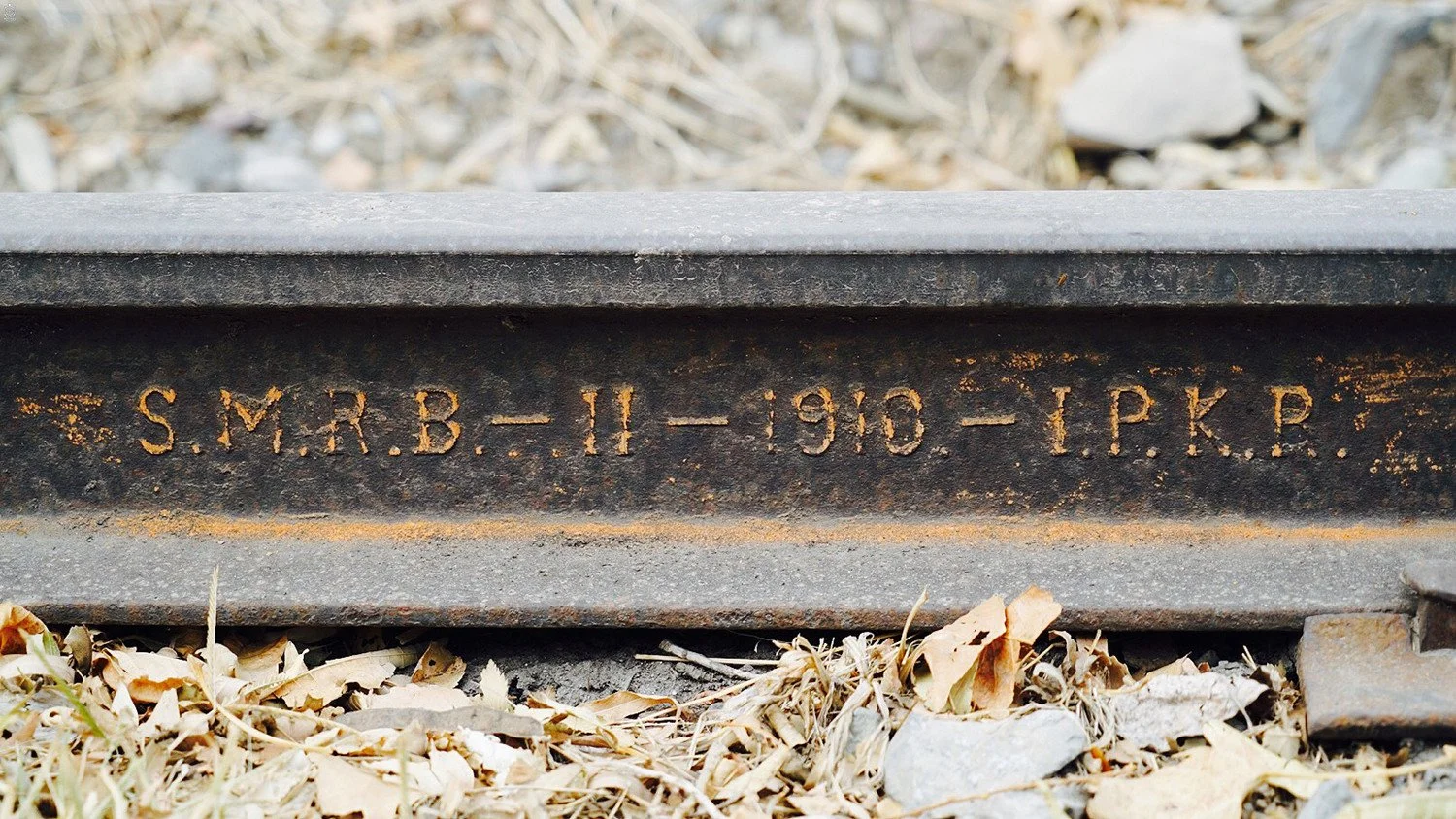

S.M.R.B - II - 1910 - I.P.K.R
An 85 lb/yd (42 kg/m) rail manufactured at the Steelton Works in the United States in February 1910 for the Peking–Kalgan / Peking–Suiyuan Railway. Photographed on the headshunt at Datai Station in November 2018.

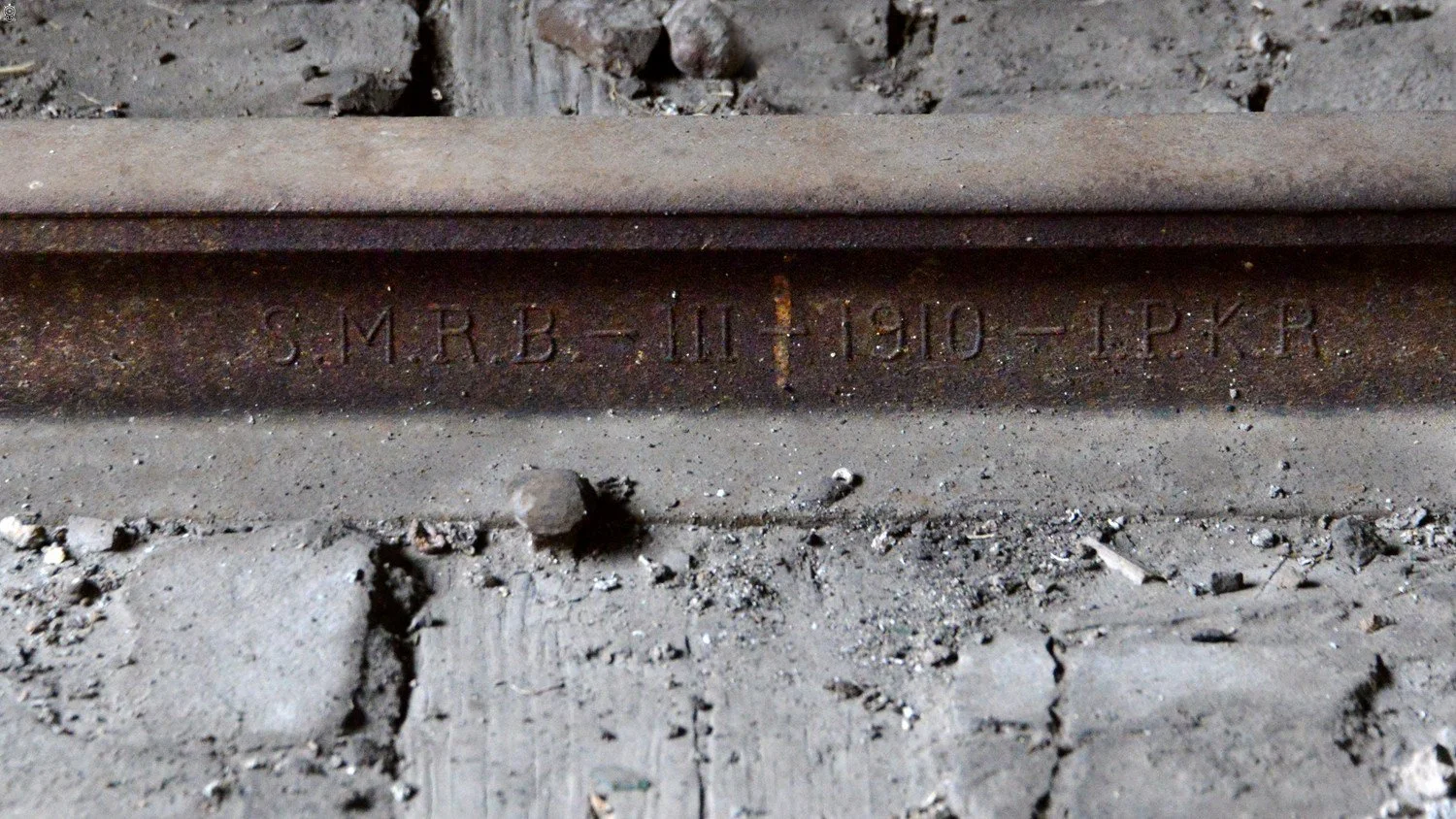

S.M.R.B - III - 1910 - I.P.K.R
An 85 lb/yd (42 kg/m) rail manufactured at the Steelton Works in the United States in March 1910 for the Peking–Kalgan / Peking–Suiyuan Railway. Photographed on the grain depot siding at Zhangjiakou Station in March 2016. The grain depot and its siding were demolished in 2020.

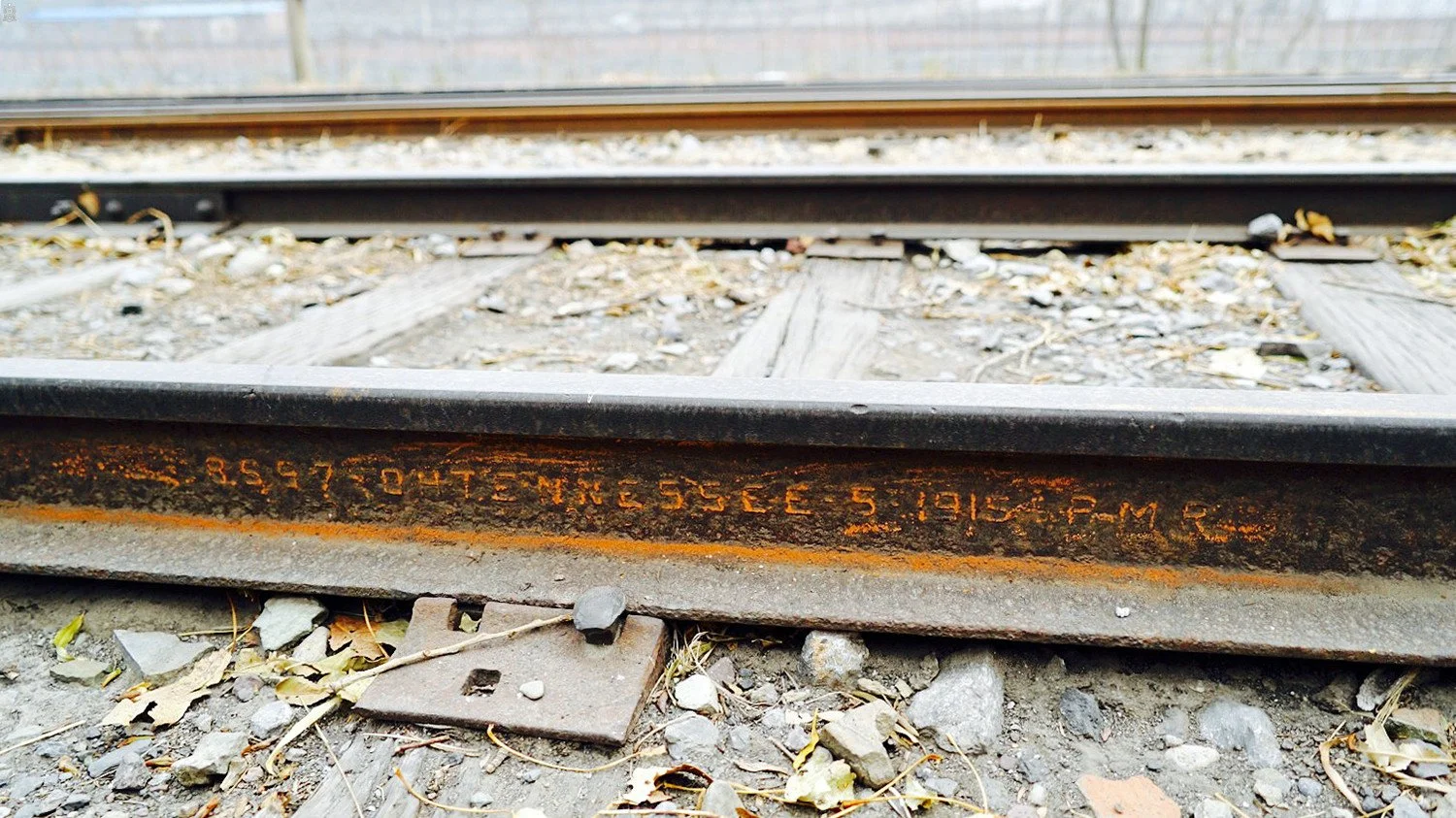

8587 - OH - TENNESSEE - 5 - 1915 - P.M.R
A rail manufactured by the Tennessee Coal, Iron and Railroad Company in 1915 for the Peking–Mukden Railway. It was later reused as a guard rail on a railway bridge serving the Yingcheng Saltworks siding. Photographed at the Kangzhuang East Freight Yard in March 2017.

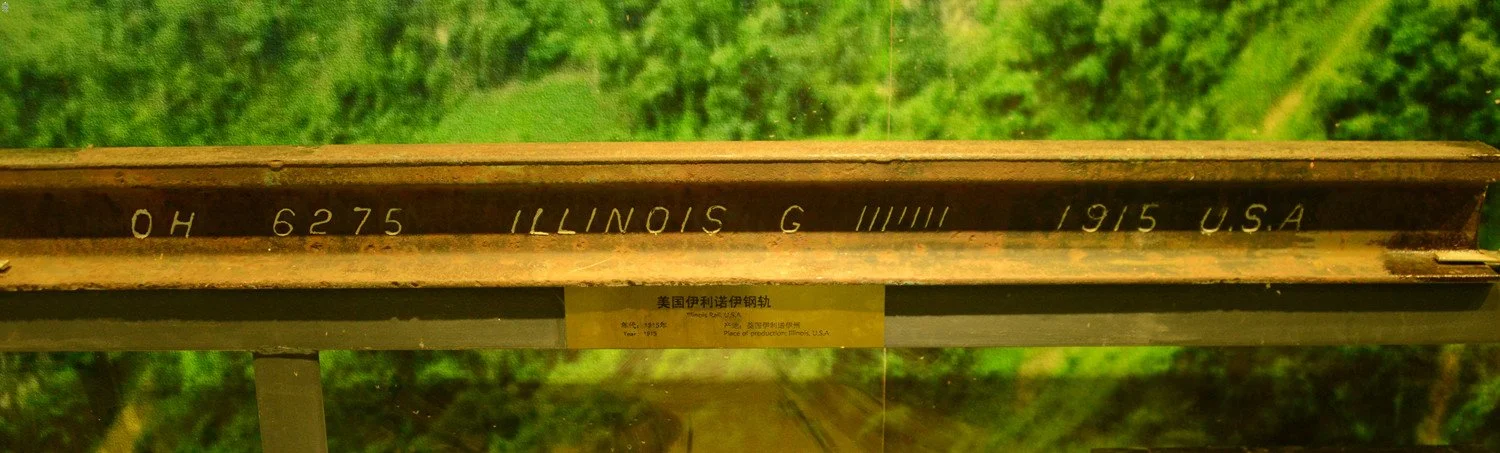

OH 6275 ILLINOIS G IIIIIII 1915 U.S.A
A rail manufactured by the Illinois Steel Company in July 1915. Photographed at the Kunming Railway Museum in April 2017.

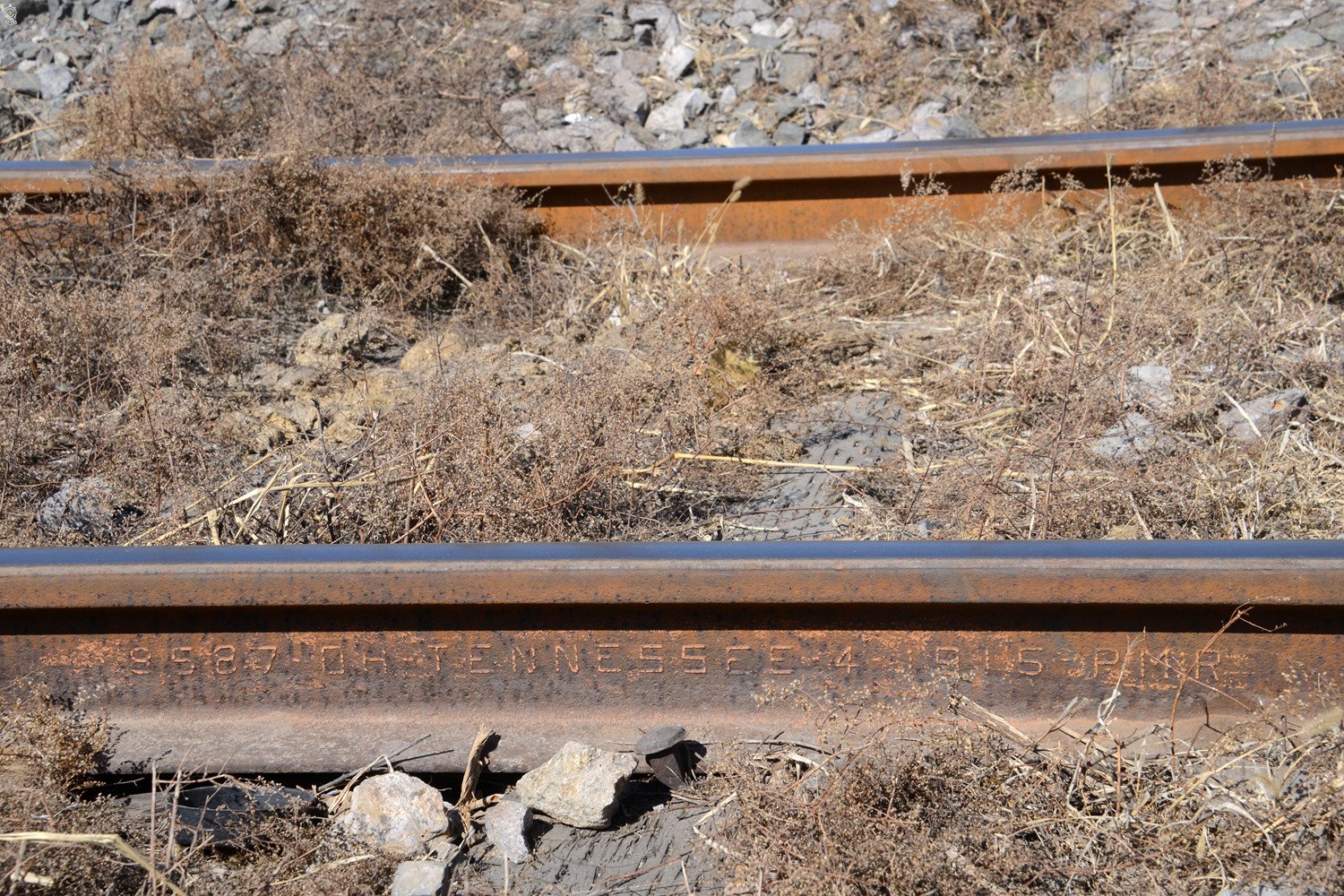

8587 - OH - TENNESSEE - 5 - 1915 - P.M.R
A rail manufactured by the Tennessee Coal, Iron and Railroad Company in 1915 for the Peking–Mukden Railway. Photographed on the headshunt at Datai Station in November 2018.
